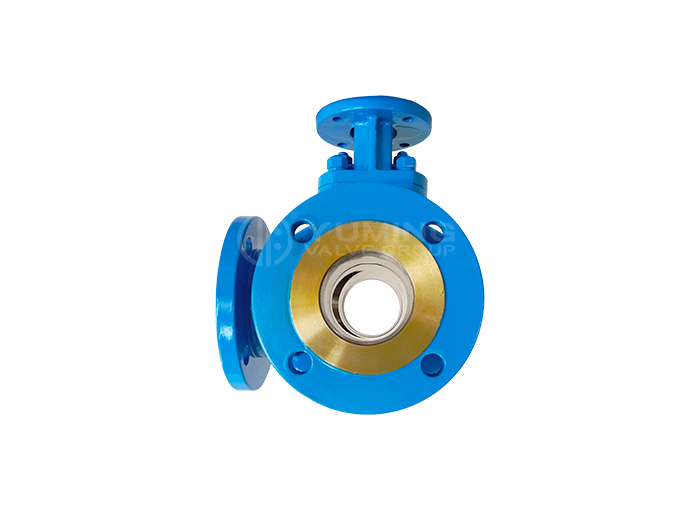

Three way ball valve can be divided in to L type and T type. L type three way ball valve (Q44F) is used to change the flow direction and connect mutually perpendicular two pipelines.

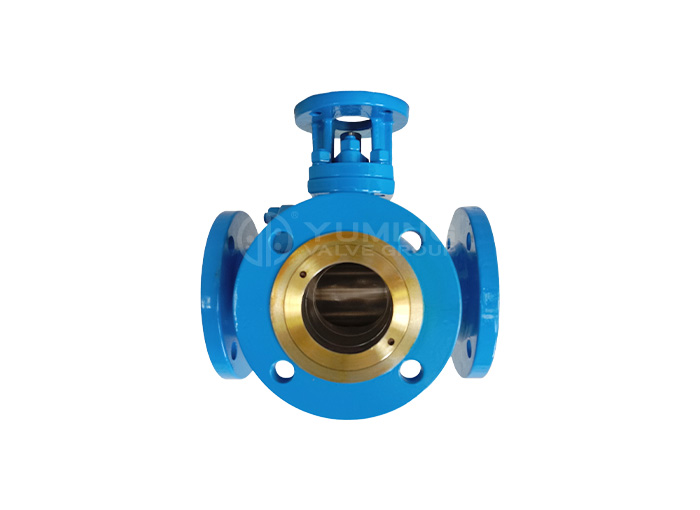

T type three way ball valve (Q45F) is utilized to divert, interflow and flow reversal, which can connect three pipelines or two pipelines. Three way ball valve usually adopts two valve seats, it can also utilize four valve seats as required.

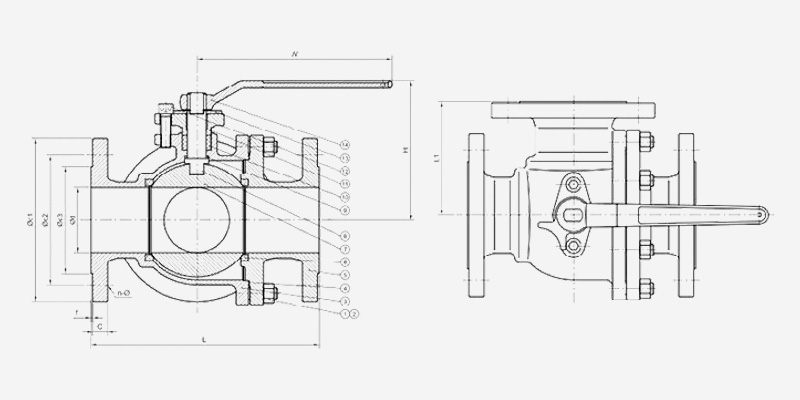

.jpg)
|
Nominal Pressure |
Nominal Diameter |
L |
L1 |
H |
W |
Weight(kg) |
|||||
|
Mpa |
mm |
in |
mm |
mm |
mm |
mm |
1.6 |
2.5 |
4.0 |
CL150 |
JIS10K |
|
1.6 2.5 4.0 CL150 JIS10K |
15 |
1/2 |
130 |
65 |
62 |
100 |
2.5 |
3.0 |
3.5 |
2.5 |
2.5 |
|
20 |
3/4 |
150 |
75 |
68 |
160 |
3.0 |
3.5 |
4.5 |
3.0 |
3.6 |
|
|
25 |
1 |
160 |
80 |
75 |
160 |
4.8 |
5.0 |
6 |
5.0 |
5.0 |
|
|
32 |
1 1/4 |
180 |
90 |
85 |
200 |
6.5 |
7 |
8.5 |
7 |
7 |
|
|
40 |
1 1/2 |
200 |
100 |
95 |
200 |
8.5 |
9 |
10.5 |
9 |
9 |
|
|
50 |
2 |
230 |
115 |
110 |
250 |
11 |
12 |
14 |
12 |
11 |
|
|
65 |
2 1/2 |
290 |
145 |
130 |
300 |
15 |
17 |
20 |
16 |
16 |
|
|
80 |
3 |
310 |
155 |
155 |
400 |
21 |
22 |
32 |
21 |
22 |
|
|
100 |
4 |
350 |
175 |
180 |
500 |
33 |
36 |
50 |
36 |
36 |
|
|
125 |
5 |
400 |
200 |
250 |
600 |
65 |
70 |
80 |
68 |
70 |
|
|
150 |
6 |
480 |
240 |
275 |
800 |
103 |
110 |
120 |
105 |
105 |
|
|
200 |
8 |
580 |
290 |
325 |
1000 |
152 |
168 |
180 |
160 |
160 |
|
