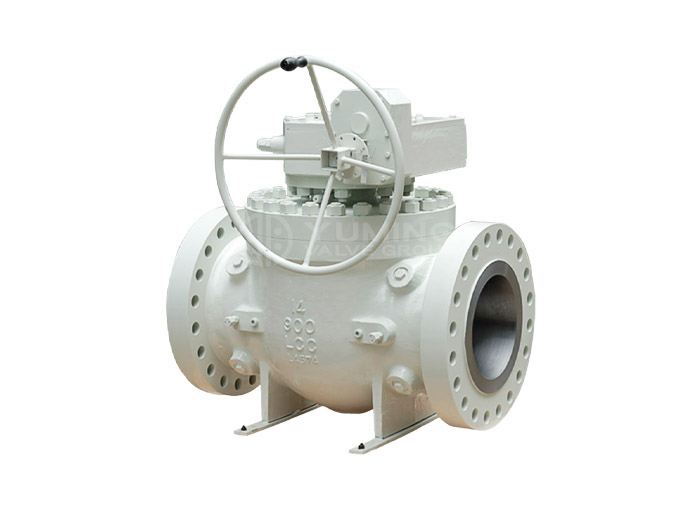

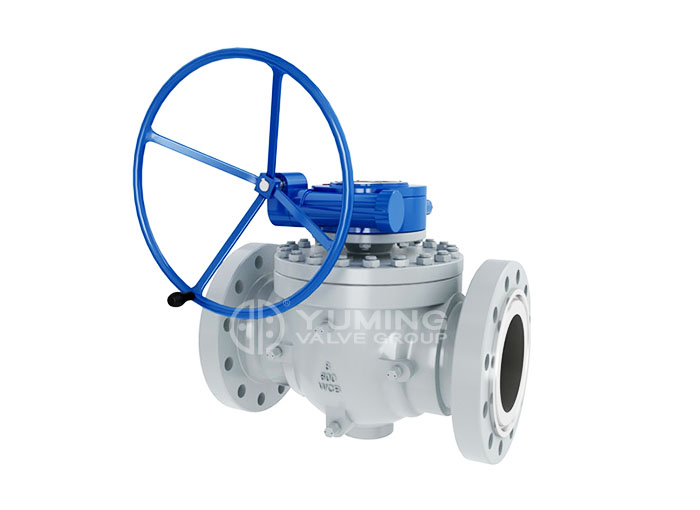

Top Enter Ball Valve

Application
Long distance pipe lines for petroleum, chemical industry, metallurgy, light industry, power station, urban construction water supply, as well as oil, gas and natural gas transmission and so on

Specifications:
Top Entry Ball Valve (Floating Ball)
Top Entry Ball Valve (Trunnion Ball)
Bore: Full Bore and Reduced Bore

Usage
The top entry ball valve is mainly used on pipelines and industrial systems. It has such advantages as top online maintenance function,small fluid resistance, simple structure,
reliable sealing, convenient operation and maintenance,rapid on-off operation, flexible opening and closing, etc. The driving modes include manual operation, worm and worm gear
transmission, pneumatic operation and electric operation. The connection ends can be flange or butt welding.


Design Structural Features

1. Integral structure
The body adopts the integral structure, so as to ensure that it has enough strength and rigidity under the maximum rated working pressure. The valve trims have been carefully designed and selected to ensure reliability under various service conditions. The sufficient wall thickness and the connection bolts of high strength are very helpful to the maintenance and servicing of valves and are able to endure pipeline stress.

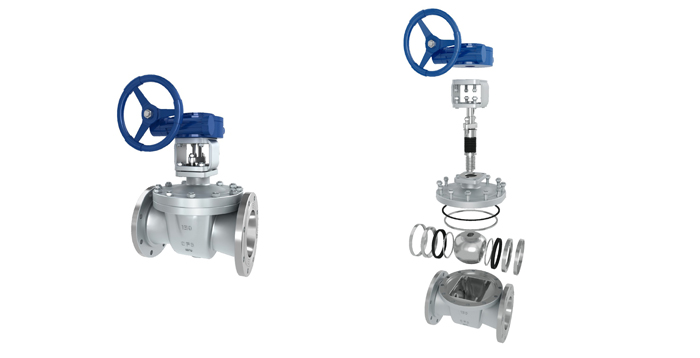

2. Top Entry Structure
The valve adopts the top entry structure. The most distinctive difference between this kind of valve and others is that the online maintenance function can be realized without the
need of removing the valve from the pipeline.The seat adopts the concession type seat structure.and the rear end of the seat retainer is set as obilque angle to prevent impurities
accumulated on the seat from influencing the concession of seat.

Simple structure with good tightness and small torque;
With a fully-welded valve body, full bore and the minimum flow resistance (zero actually);
Fire safe, anti-static and anti-blowout stem desjgn;
Valve seat function DBB, DIB-1, DIB-2;
