INTRODUCTION

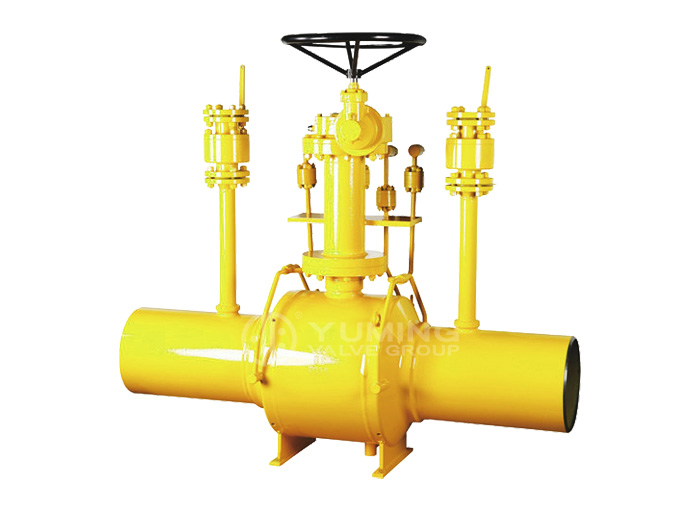

Product Overview
Fully Welded Heating Ball Valve is widely used as an on-off control device in urban heating systems, heat and power pipe networks for water and steam supply, petrochemicals, petroleum, natural gas, pharmaceuticals, and other fields. The valve body is made of high-strength carbon steel seamless pipes or steel plates, which are pressed and formed into a fully welded structure. The ball can be either a floating or fixed structure. The sealing structure of the valve seat is designed as a multi-stage sealing structure with a single or double soft-sealing ring, ensuring reliable sealing and long-term stable operation of this series of ball valves.

Structural Features

The valve stem is made of high-performance stainless steel material with good corrosion resistance. The sealing materials are fluororubber (FPM) and carbonized tetrafluoroethylene (PTFE+C), which are characterized by high strength, high temperature and high pressure resistance, and corrosion resistance. The valve body material uses the same high-strength carbon steel as the pipeline, which will not experience uneven stress, nor will it deform due to earthquakes or passing vehicles. The pipeline is resistant to aging and can also be connected with flanges or other methods according to customer needs.
The ball is made of high-performance stainless steel and the entire manufacturing process is tracked and tested by advanced computer detectors, so the machining precision of the ball is very high, making the operation easy and without interference.
The valve stem is designed to be explosion-proof for safe usage.
The entire assembly process of the valve is completed at a constant temperature, ensuring product quality.
Compared with similar products in the same industry, the valve body design is compact and aesthetically pleasing.
With normal operation and usage of the valve, the service life can reach more than 20 years.

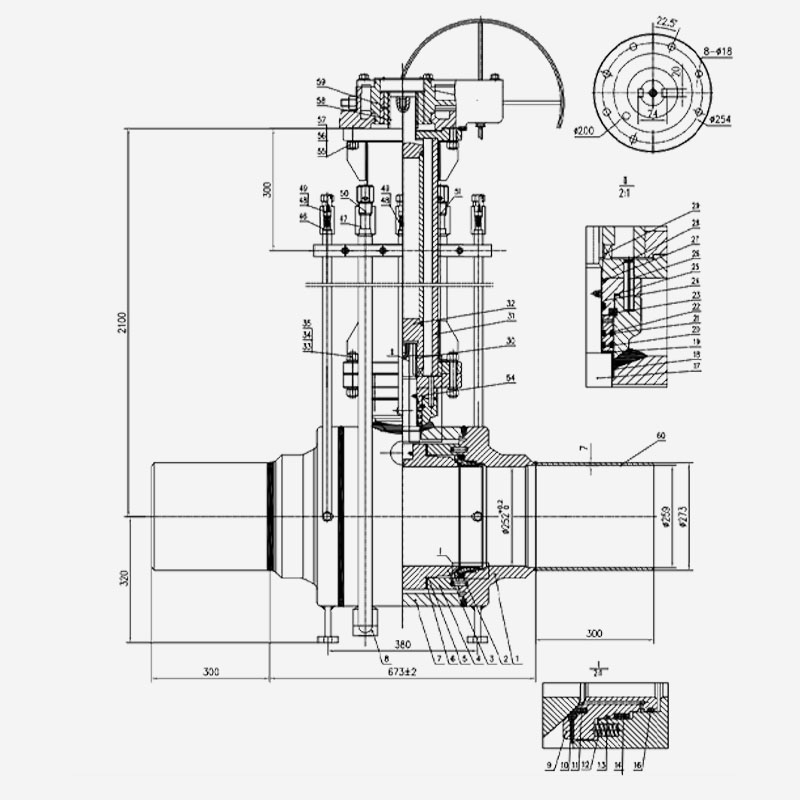

DATA

DN		D		L		H1		H2		V
in	mm	in	mm	in	mm	in	mm	in	mm	in	mm
PN16
2	50	1.93	49	8.5	216	6.04	153	4.1	104	/	/
3	80	2.91	74	11.14	283	7.28	185	4.8	122	/	/
4	100	3.94	100	12.01	305	8.06	205	5.37	137	/	/
6	150	5.91	150	17.99	457	11.44	291	9.47	241	15.75	400
8	200	7.91	201	20.51	521	12.95	329	10.87	276	15.75	400
10	250	9.92	252	22.01	559	15.45	393	12.44	316	23.62	600
12	300	11.93	303	25	635	16.95	431	13.94	354	23.62	600
14	350	13.15	334	30	762	21.22	539	15.04	382	23.62	600
16	400	15.16	385	32.99	838	22.68	576	16.46	418	23.62	600
18	450	17.17	436	35.98	914	24.19	615	17.97	457	23.62	600
20	500	19.17	487	39.02	991	25.73	654	19.51	496	23.62	600
22	550	21.18	538	42.99	1092	29.47	749	20.85	530	23.62	600
24	600	23.19	589	45	1143	31.65	804	22.7	577	27.56	700
26	650	24.92	633	49.02	1245	33.05	840	23.74	603	27.56	700
28	700	26.93	684	52.99	1346	29.86	759	25.33	644	29.92	760
30	750	28.94	735	55	1397	31.36	797	26.83	682	29.92	760
32	800	30.67	779	60	1524	32.68	830	28.11	714	29.92	760
34	850	32.68	830	64.02	1626	30.81	783	29.57	751	29.92	760
36	900	34.41	874	67.99	1727	36.4	925	30.91	785	29.92	760
40	1000	38.43	976	70.08	1780	44.7	1136	34.17	868	29.92	760
42	1050	40.16	1020	72.01	1829	46.02	1169	35.45	901	29.92	760
48	1200	45.91	1166	78.54	1995	50.3	1278	39.7	1009	29.92	760
PN40
2	50	1.93	49	8.5	216	6.04	153	4.1	104	/	/
3	80	2.91	74	11.14	283	7.28	185	4.8	122	/	/
4	100	3.94	100	12.01	305	8.11	206	5.59	142	11.81	300
6	150	5.91	150	17.99	457	11.44	291	9.47	241	15.75	400
8	200	7.91	201	20.51	521	13.23	336	10.87	276	19.69	500
10	250	9.92	252	22.01	559	15.45	393	12.44	316	23.62	600
12	300	11.93	303	25	635	16.95	431	13.94	354	23.62	600
14	350	13.15	334	30	762	21.22	539	15.04	382	23.62	600
16	400	15.16	385	32.99	838	22.68	576	16.46	418	23.62	600
18	450	17.17	436	35.98	914	25.49	648	17.97	457	23.62	600
20	500	19.17	487	39.02	991	27.7	704	19.51	496	27.56	700
22	550	21.18	538	42.99	1092	30.14	766	21.18	538	27.56	700
24	600	23.19	589	45	1143	27.28	693	22.7	577	29.92	760
26	650	24.92	633	49.02	1245	28.68	729	24.15	614	29.92	760
28	700	26.93	684	52.99	1346	31.99	813	25.77	655	29.92	760
30	750	28.94	735	55	1397	33.48	851	27.28	693	29.92	760
32	800	30.67	779	60	1524	34.8	884	28.6	727	29.92	760
34	850	32.68	830	64.02	1626	36.28	922	30.1	765	29.92	760
36	900	34.41	874	67.99	1727	42.38	1077	31.65	804	29.92	760
40	1000	38.43	976	75.98	1930	45.49	1156	34.78	884	29.92	760
42	1050	40.16	1020	82.01	2083	49.25	1251	36.1	917	31.5	800
48	1200	45.91	1166	85.43	2170	43.25	1099	40.41	1027	35.43	900
PN100
2	50	1.93	49	11.5	292	6.7	170	4.25	108	/	/
3	80	2.91	74	14.02	356	7.32	186	5.04	128	11.81	300
4	100	3.94	100	17.01	432	8.19	208	5.59	142	15.75	400
6	150	5.91	150	22.01	559	11.44	291	9.63	245	15.75	400
8	200	7.31	201	25.96	660	13.23	336	11.08	282	19.69	500
10	250	9.92	252	30.98	787	15.45	393	12.74	324	23.62	600
12	300	11.93	303	32.99	838	20.98	533	14.41	366	23.62	600
14	350	13.15	334	35	889	23.31	592	15.43	392	23.62	600
16	400	15.15	385	39.02	991	24.76	629	16.91	430	23.62	600
18	450	17.17	438	42.99	1092	27.03	687	18.64	474	27.56	700
20	500	19.17	487	47.01	1194	24.21	615	20.24	514	29.92	760
22	550	21.18	538	50.98	1295	27.54	700	21.99	559	29.92	760
24	600	23.19	589	55	1397	29.07	739	23.56	599	29.92	760
26	650	24.92	633	57.01	1448	30.49	775	25.08	637	29.92	760
28	700	26.93	684	60.98	1549	37.72	958	26.87	683	29.92	760
30	750	28.94	735	65	1651	39.04	992	28.44	723	29.92	760
32	800	30.67	779	70	1778	40.35	1025	29.8	757	35.43	900
34	850	32.55	830	75.98	1930	41.85	1063	31.36	797	35.43	900
36	900	34.41	874	82.01	2083	46.79	1189	32.78	833	31.5	800
40	1000	38.43	976	85	2159	35.14	893	36.14	918	35.43	900
PN150
2	50	1.93	49	14.49	368	6.7	170	4.25	108	/	/
3	80	2.91	74	15	381	7.32	186	5.04	128	11.81	300
4	100	3.94	100	17.99	457	8.19	208	5.59	142	15.75	400
6	150	5.91	150	24.02	610	12.5	318	9.82	250	19.69	500
8	200	7.31	201	29.02	737	14.06	357	11.44	291	23.62	600
10	250	9.92	252	32.99	838	19.15	487	13.23	336	23.62	600
12	300	11.93	303	37.99	965	22.28	566	14.84	377	23.62	600
14	350	12.68	322	40.51	1029	24.59	625	16.08	409	27.56	700
16	400	14.69	373	44.49	1130	21.741	552	17.62	448	29.92	760
18	450	16.65	423	47.99	1219	23.82	605	19.43	494	29.92	760
20	500	18.54	471	50.01	1321	247.15	690	21.06	535	29.92	760
22	550	20.55	522	/	/	33.96	863	23.03	585	29.92	760
24	600	22.44	570	60.98	1549	35.53	903	24.67	627	29.92	760
26	650	24.29	617	65	1651	36.97	937	26.22	666	29.92	760
28	700	26.18	665	69.02	1753	38.7	983	27.83	707	29.92	760
30	750	28.03	712	70.02	1880	42.66	1084	29.51	750	31.5	800
32	800	29.92	760	80	2032	32.95	837	30.98	787	35.43	900
34	850	31.81	808	85	2159	33.07	840	32.64	829	35.43	900
36	900	33.66	855	90	2286	34.41	874	34.19	869	35.43	800
PN250
2	50	1.93	49	14.49	368	6.7	170	4.25	108	/	/
3	80	2.91	74	18.5	470	7.89	200	5.04	128	15.75	400
4	100	3.94	100	21.5	546	8.19	208	5.79	147	15.75	400
6	150	5.67	150	27.76	705	12.62	321	10.31	262	23.62	600
8	200	7.56	192	32.76	832	18.74	476	12.09	307	23.62	600
10	250	9.41	239	39.02	991	20.63	524	14.06	357	27.56	700
12	300	11.3	287	44.49	1130	19.37	492	15.93	405	29.92	760
14	350	12.4	315	49.49	1257	21.44	544	17.13	435	29.92	760
16	400	14.17	360	54.49	1384	23.84	606	18.92	481	29.92	760
18	450	15.98	406	60.61	1537	30.24	768	20.79	528	29.92	760
20	500	17.87	454	65.51	1664	32.22	819	22.72	577	29.92	760
22	550	19.69	500	-	-	35.14	893	24.69	627	35.43	900
24	600	21.5	546	76.5	1943	39.55	1005	26.54	674	31.5	800
