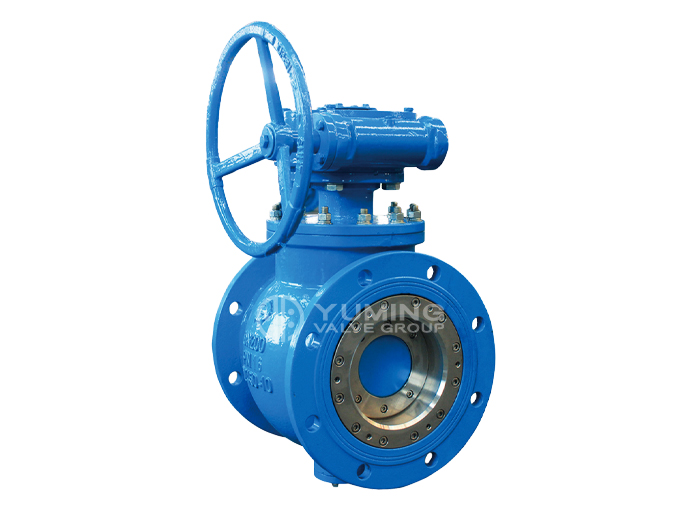

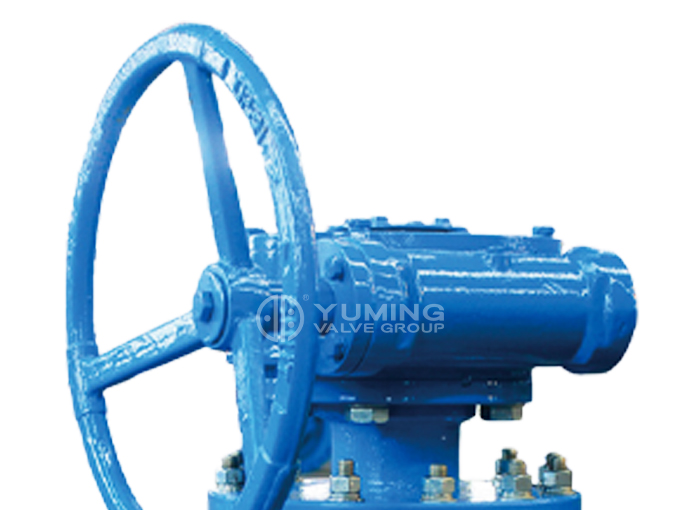

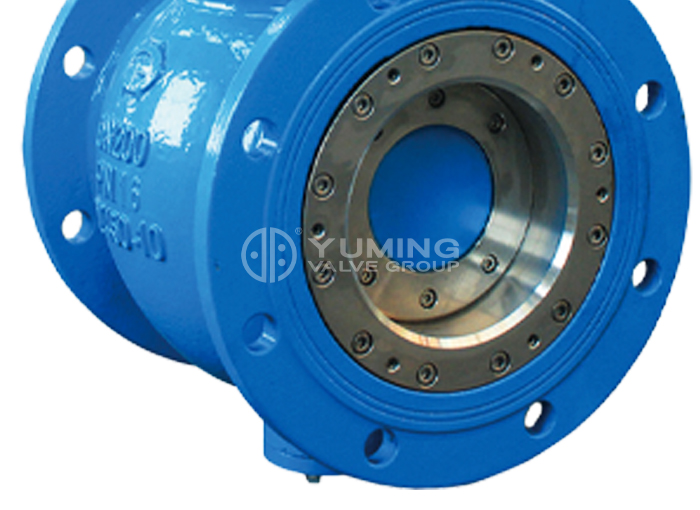

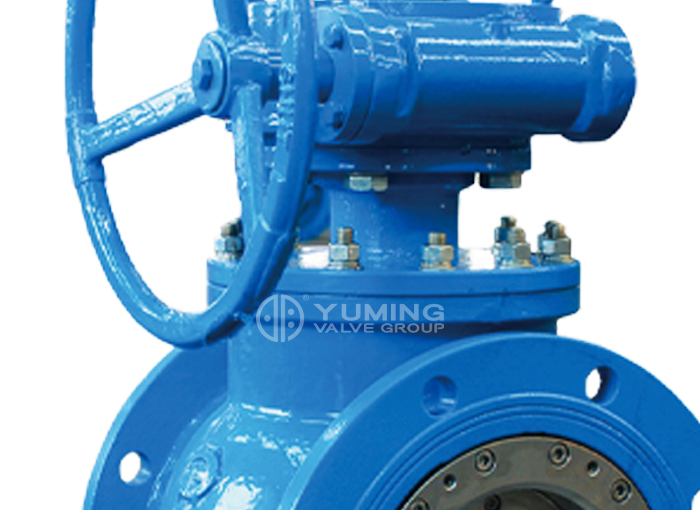

Top Entry Eccentric Half Ball Valve

Introduction

This series of butterfly valve adopts double eccentric soft sealing structure,suitable for food,medicine,chemical industry,
petroleum,electric power, textile, paper and other water supply and drainage, gas pipeline for regulating the flow and
interception of medium.

Features
1、Low pressure loss: The flow channel is completely unblocked when fully opened, and the water loss is zero.

2、Particle abrasion resistance: suitablefor fibers,tiny solid particles, pulp,etc.

3、Suitable for high-velocity media:straight-through flow channel,strong eccentric crankshaft makes it suitable for high-velocity
and vibration-free.

4、Long service life:no wearing parts,no friction between the sealing surfaces when the valve is opened and closed.

5、Convenient maintenance: Open the valve cover to perform maintenance without removing it from the pipeline.

DATA

Body	Ductileiron、Stainless steel、Carbon steel、Ni-Cr alloy
Disc	Ductile iron、Stainless steel、Carbon steel、Ni-Cr alloy
Shaft	2Cr13、1Cr13、Stainless steel、1Cr18Ni8Ti
Seat	Stainless steel
Sealing ring	NBR、EPDM、PTFE

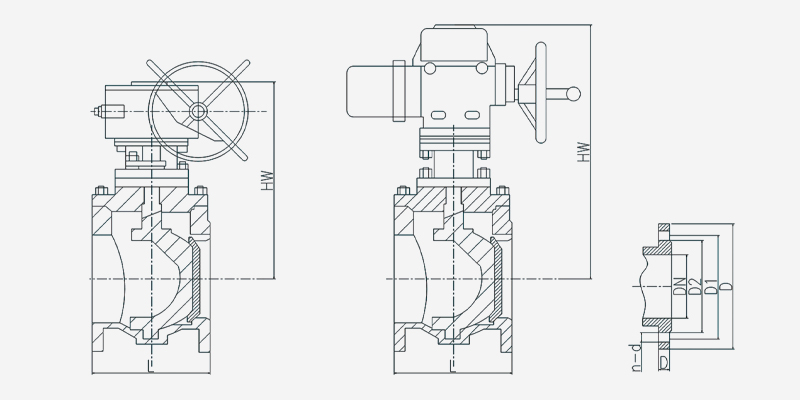

Nominal size		Face-to-face	Hw	PN10、PN16 connection size-worm gear
NPS (inch)	DN (mm)	Face-to-face	Hw	D	D1	n-d
100	4	229	330	215	180	8-ф18
125	5	254	345	245	210	8-ф18
150	6	267	370	280	240	8-ф23
200	8	292	405	335	295	12-ф23
250	10	330	480	405	355	12-ф25
300	12	356	520	460	410	12-ф25
350	14	430	570	520	470	16-ф25
400	16	530	630	580	525	16-ф30
450	18	580	690	640	585	20-ф30
500	20	660	740	705	650	24-ф41
600	24	840	840	840	770	20-ф34
700	28	900	960	910	840	20-ф41
800	32	1000	1080	1020	950	24-ф41
900	36	1100	1190	1120	1050	28-ф41
1000	40	1200	1310	1255	1170	28-ф48
1200	48	1300	1420	1485	1390	32-ф54
1400	56	1500	1540	1685	1590	36-ф54
