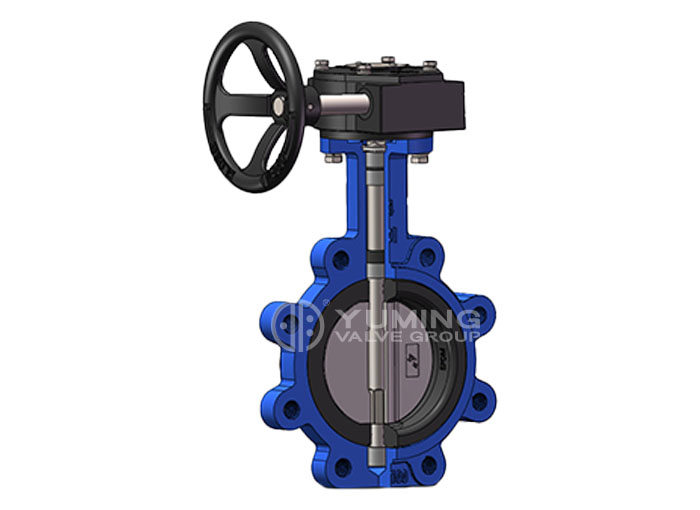

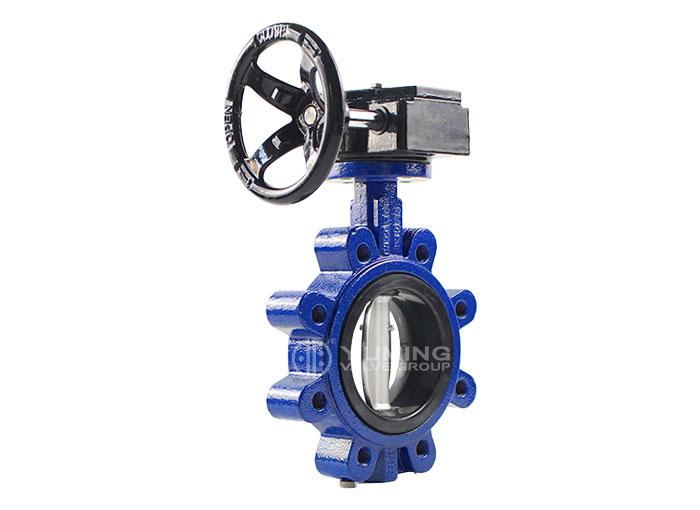

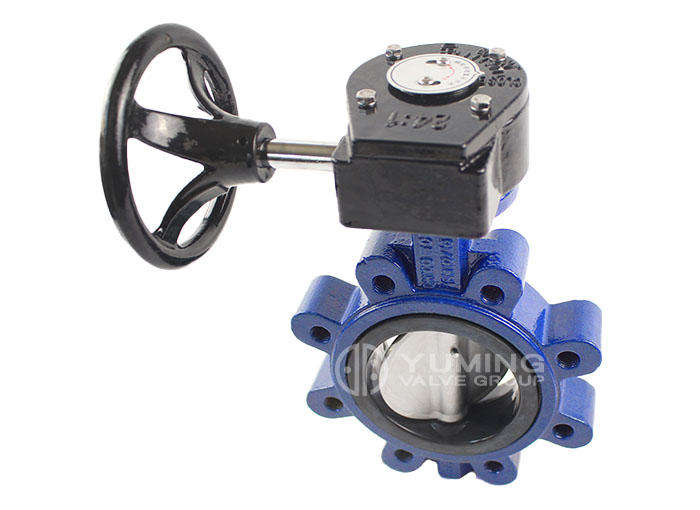

Worm Gear Lug Butterfly Valve|Yuming Valve

INTRODUCTION

Product Advantages

1、The structure is simple and compact, the rotation of 90 °is quickly to open and close, and the service life is long. The side flange can meet the PN10, PN16, 150Lb and 10K flanges;

2、All products can provide the pressure test: All Yuming products can provide the pressure test report before leaving the factory.

3、High performance seat rubber: The rubber content is 50%, and the switch life is more than 30000 times

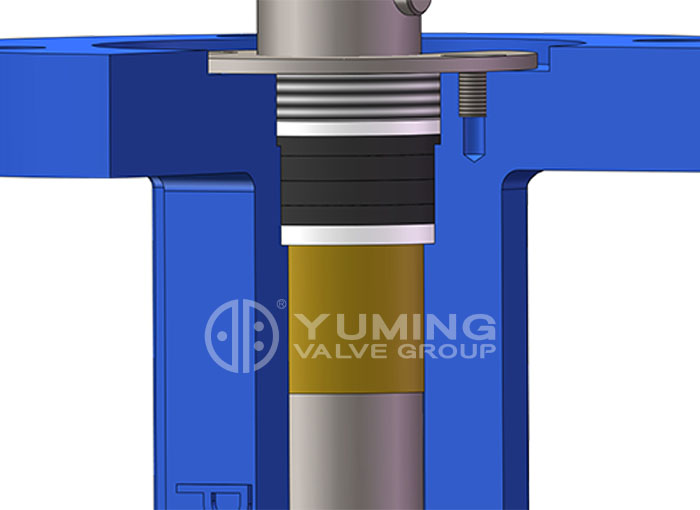

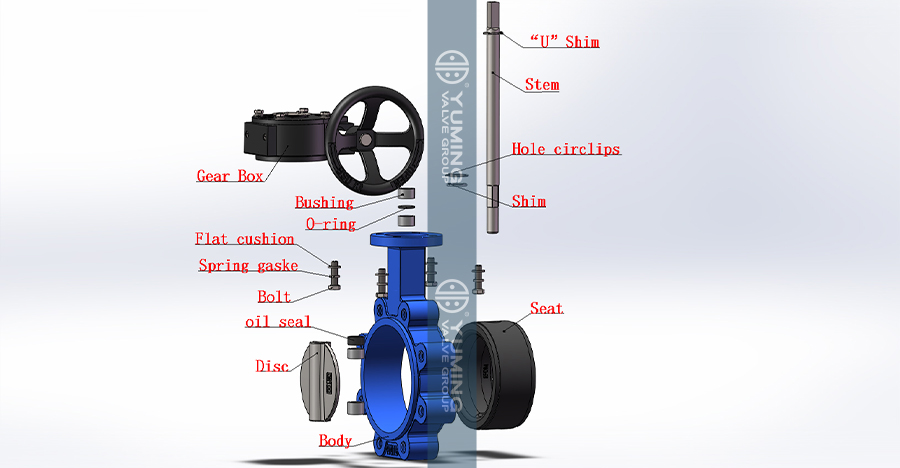

4、Axial seal: The shaft is supported by 4 oil-free bearings, double seal structure design of oil seal and O-ring, smaller torque and reliable seal; The upper and lower shaft holes of DN350 and above large diameter valves are designed with packing box structure, and the packing is pressed by the gland to realize sealing.

5、Surface coating: Epoxy powder coating is adopted, with strong adhesion and good weather resistance. It can be used indoors and outdoors.

1.Small in size and light in weight. Easy installation and maintenance. It can be mounted wherever needed.
2.Simple and compact construction, quick 90 degree on-off operation.
3.Flow curve tending to straight line. Excellent regulation performance.
4.Long service life. Standing the test of thousands opening/closing operation.
5.Wide selection of materials, applicable for various media.
6.Anti-static device. Fire safe design available,
7. Blow-out proof Stem.
8.Suitable media: water, oil, Gas and some corrosive liquids.

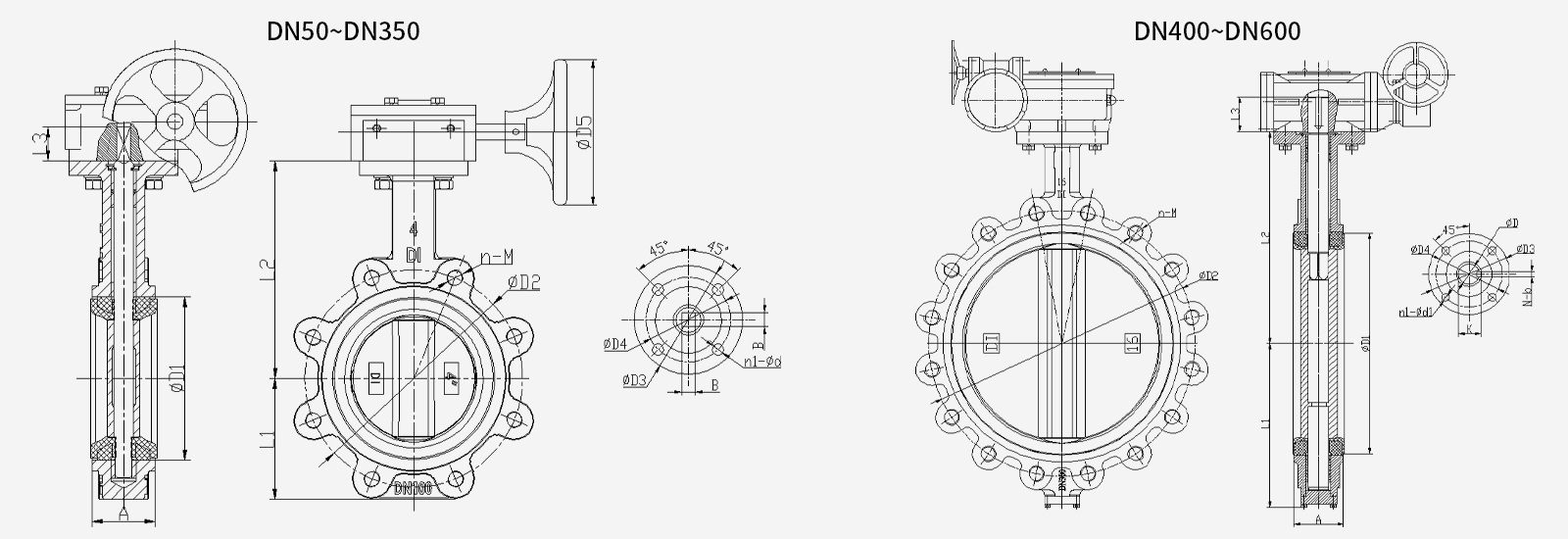

DATA

DN50--DN350

DN		A	D1	L1	L2	L3	B	PN16		PN10		150LB		φD3	φD4	n1-φd	D5
								D2	n-M	D2	n-M	D2	n-M
2″	DN50	42	73.3	54	161	25	9	125	4-M16	125	4-M16	120.7	4-5/8″	65	50	4-8	135
2.5″	DN65	44	86	62	175	25	9	145	4-M16	145	4-M16	139.7	4-5/8″	65	50	4-8	135
3″	DN80	45	100.9	82	181	25	9	160	8-M16	160	8-M16	152.4	4-5/8″	65	50	4-8	135
4″	DN100	51.5	132	99	200	28	11	180	8-M16	180	8-M16	190.5	8-5/8″	90	70	4-10	135
5″	DN125	54	156	114	213	28	14	210	8-M16	210	8-M16	215.9	8-3/4″	90	70	4-10	135
6″	DN150	55	185	129	236	28	14	240	8-M20	240	8-M20	241.3	8-3/4″	90	70	4-10	135
8″	DN200	59	235	150	260	33	17	295	12-M20	295	8-M20	298.5	8-3/4″	125	102	4-12	270
10″	DN250	66	289	186	292	33	22	355	12-M24	350	12-M20	362	12-7/8″	125	102	4-12	270
12″	DN300	76	341	218	337	33	22	410	12-M24	400	12-M20	431.8	12-7/8″	125	102	4-12	270
14″	DN350	76	372	242	368	45	22	470	16-M24	460	16-M20	476.3	12-1″	125	102	4-12	270

DN400--DN600

DN		A	D1	L1	L2	L3	φD	N-b	K	PN16		PN10		150LB		φD3	φD4	n1-φd1
										D2	n-φd	D2	n-φd	D2	n-φd
16″	DN400	86.5	436	320	403	52	33.15	1-10	36.2	525	16-M27	515	16-M24	539.8	16-1″	175	140	4-18
18″	DN450	104.6	487	351	415	52	38	1-10	41	585	20-M27	565	20-M24	577.9	16-1 1/8″	175	140	4-18
20″	DN500	130	532	386	466	64	41.15	1-12	44.2	650	20-M30	620	20-M24	635	20-1 1/8″	175	140	4-18
24″	DN600	152	651	446	525	70	50.65	1-16	54.7	770	20-M33	725	20-M27	749.3	20-1 1/4″	210	165	4-22
