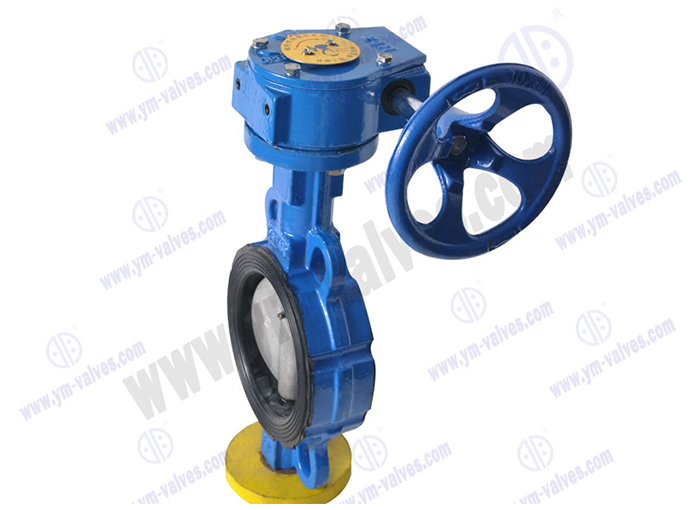

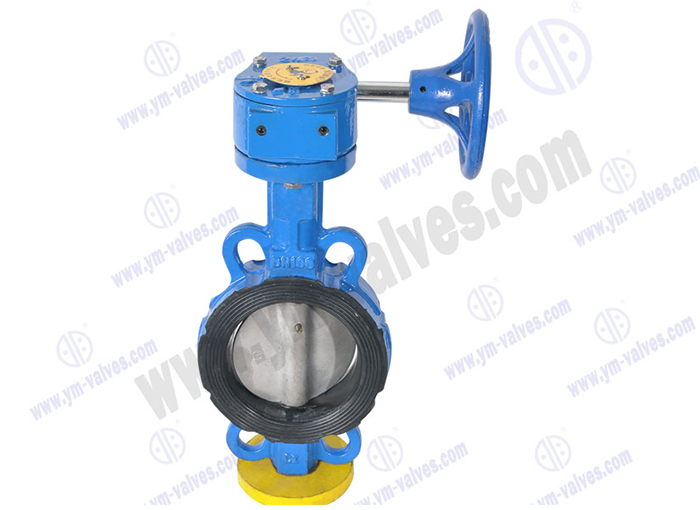

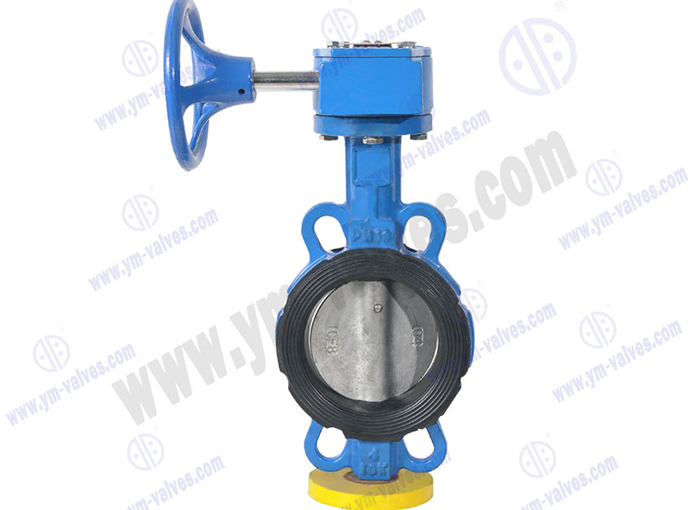

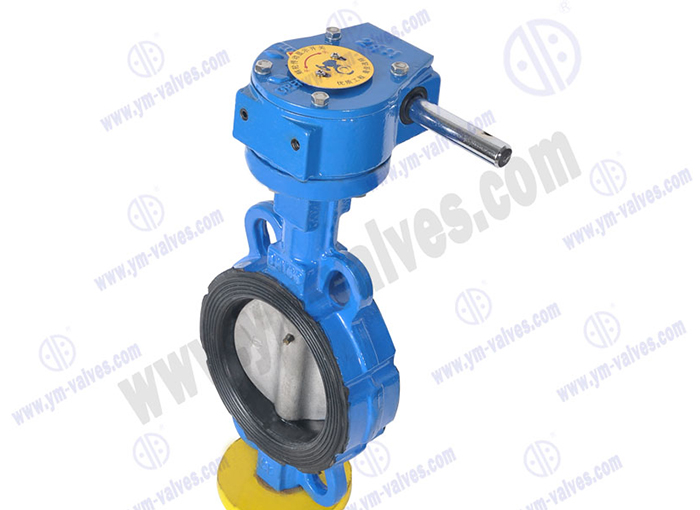

Worm gear wafer type soft seal butterfly valve

Introduction

Body Test: .5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.

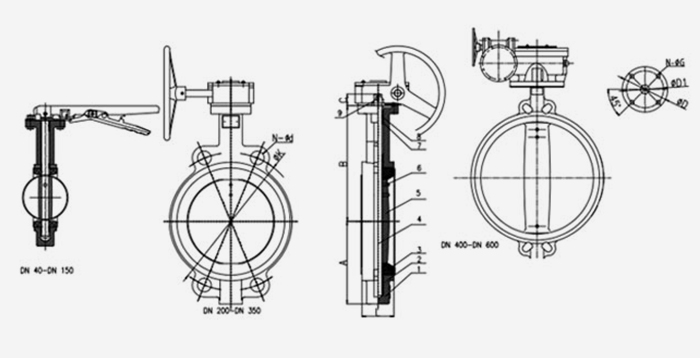

DATA

SIZE	A	B	C	d0	PCD	N-Q	N1-M	ISO5211	∅K	∅E	N-∅d1	B1×B1	J	L
DN40	120	70	33	12.6	110	4-19	-	F05	65	50	4-7	9×9	-	26
DN50	161	80	43	12.6	125	4-19	-	F07	90	70	4-10	11×11	-	26
DN65	175	89	46	12.6	145	4-19	-	F07	90	70	4-10	11×11	-	30
DN80	181	95	46	12.6	160	8-19	-	F07	90	70	4-10	11×11	-	30
DN100	200	114	52	15.77	180	8-19	-	F07	90	70	4-10	11×11	-	30
DN125	213	127	56	18.92	210	8-19	-	F07	90	70	4-10	14×14	-	30
DN150	226	139	56	18.92	240	8-22	-	F07	90	70	4-10	14×14	-	40
DN200	260	175	60	22.1	295	8-22	-	F10	125	102	4-12	17×17	-	40
DN250	292	203	68	28.45	350	12-22	-	F10	125	102	4-12	22×22	-	40
DN300	337	242	78	31.6	400	12-22	-	F10	125	102	4-12	22×22	-	40
DN350	368	267	78	31.6	460	16-22	-	F10	125	102	4-12	22×22	-	40
DN400	400	309	102	33.15	515	16-26	-	F14	175	140	4-18	27×27	-	50
DN450	422	328	114	37.95	565	20-26	-	F14	175	140	4-18	27×27	-	70
DN500	480	361	127	41.12	620	20-26	-	F14	175	165	4-18	36×36	-	80
DN600	562	459	154	50.62	725	20-30	-	F16	210	254	4-23	36×36	-	80
DN700	624	520	165	63.35	840	20-33	4-M27	F25	300	254	8-18	-	2-18	85
DN800	672	591	190	63.35	950	20-33	4-M30	F25	300	254	8-18	-	2-18	95
DN900	720	656	203	74.7	1050	24-33	4-M30	F25	300	254	8-18	-	2-20	118
DN1000	800	721	216	84.7	1160	24-36	4-M33	F25	300	254	8-18	-	2-22	118
DN1200	941	864	256	104.7	1380	28-39	4-M36	F30	350	298	8-22	-	2-28	154
