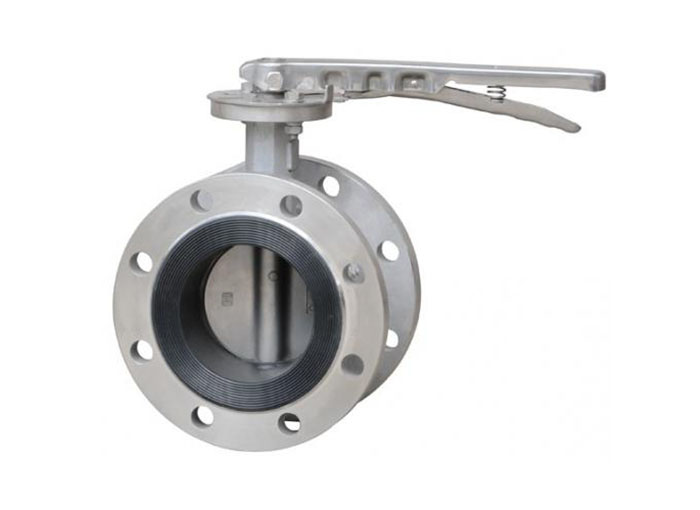

Double Flanged Soft Seal Concentric Butterfly Valve
Double Flanged Soft Seal Concentric Butterfly Valve
Double Flanged Soft Seal Concentric Butterfly Valve
Double Flanged Soft Seal Concentric Butterfly Valve

Double Flanged Soft Seal Concentric Butterfly Valve

Size DN50-DN4000
Pressure PN6-PN16
Body Materials Carbon steel, Ductile Iron, stainless steel
concatenon wafer
Mode of operation Handle, worm gear, electric, pneumatic, hydraulic
Introduction
DATA
Related
INQUIRY
Introduction

Product features

1, adopt the most advanced double eccentric sealing structure, reliable sealing performance, can achieve zero leakage.

2, novel design, reasonable, unique structure, light weight, quick start.

3, easy to operate, labor-saving dexterity.

4, can be installed in any position, convenient maintenance

5. Seals can be replaced. Reliable sealing to achieve two-way sealing zero leakage.

6, sealing material aging resistance, corrosion resistance, long service life and other characteristics.

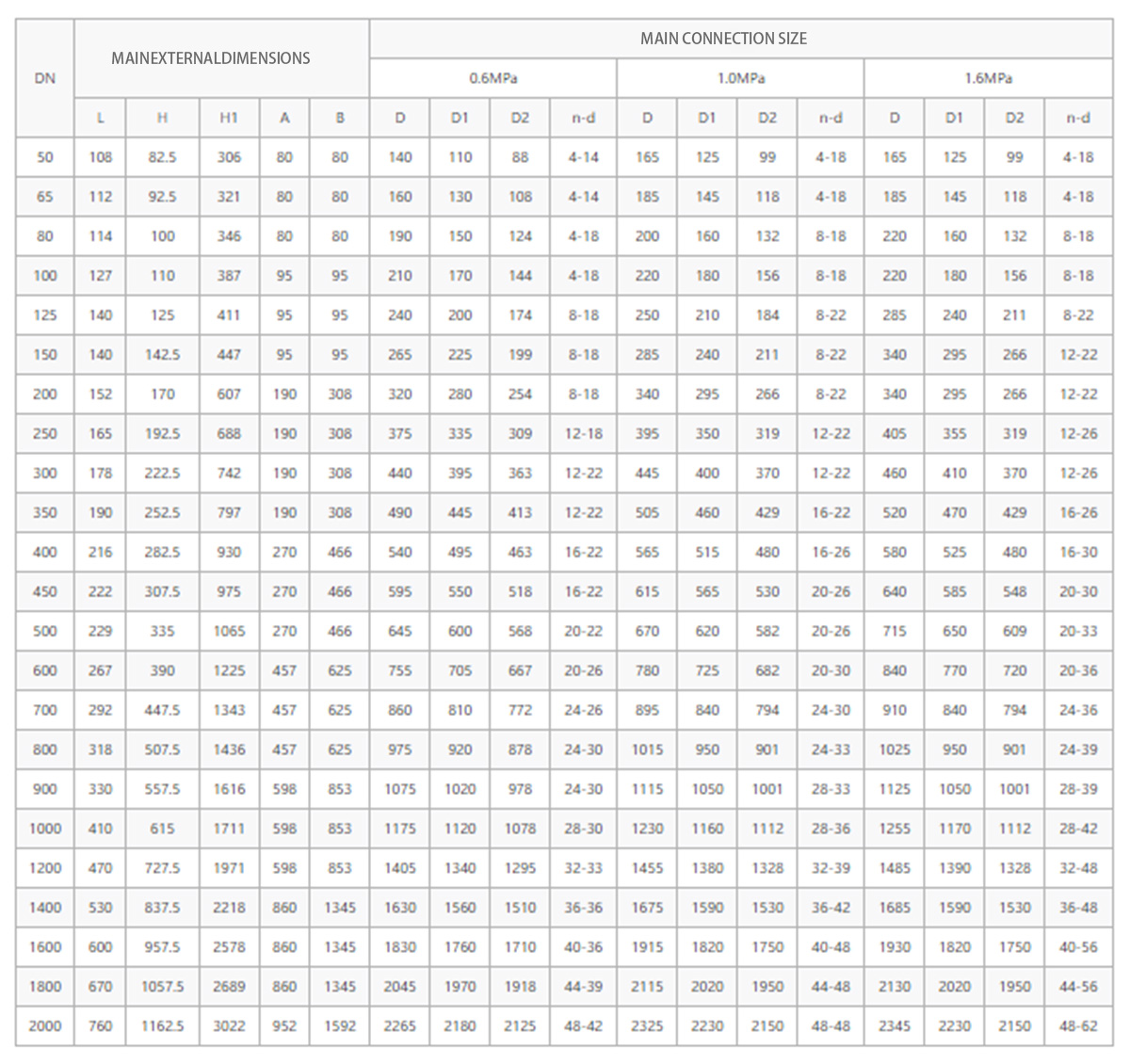

DATA

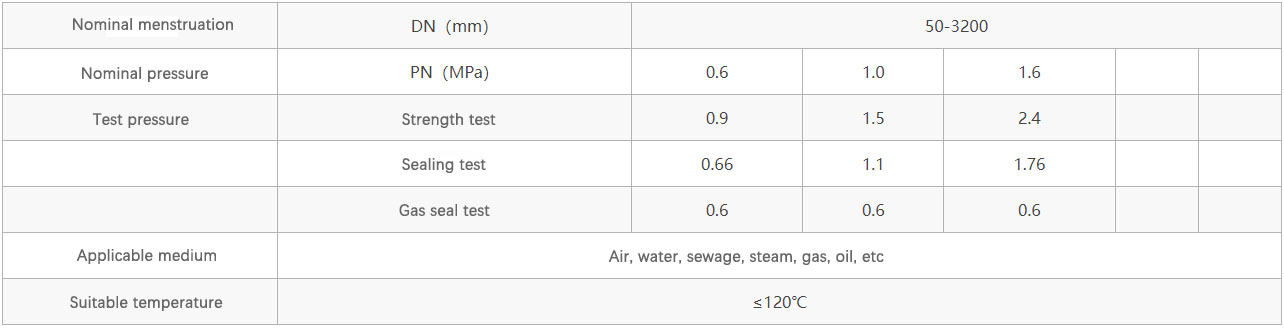

Technical parameters
