Wafer pneumatic butterfly valve
Wafer pneumatic butterfly valve
Wafer pneumatic butterfly valve
Wafer pneumatic butterfly valve
Wafer pneumatic butterfly valve
Wafer pneumatic butterfly valve
Wafer pneumatic butterfly valve
Wafer pneumatic butterfly valve

Wafer pneumatic butterfly valve

Size : 1 1/2"~48"(DN40~DN1200）
Pressure: PN10,PN16
Body Materials: Cast iron/Ductile Iron
Disc Materials: Ductile Iron/WCB/CF8/CF8M
Seat Materials: EPDM/NBR
Connection: Wafer
Send Email
Chat Now
Introduction
DATA
Application
Related
Introduction
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.

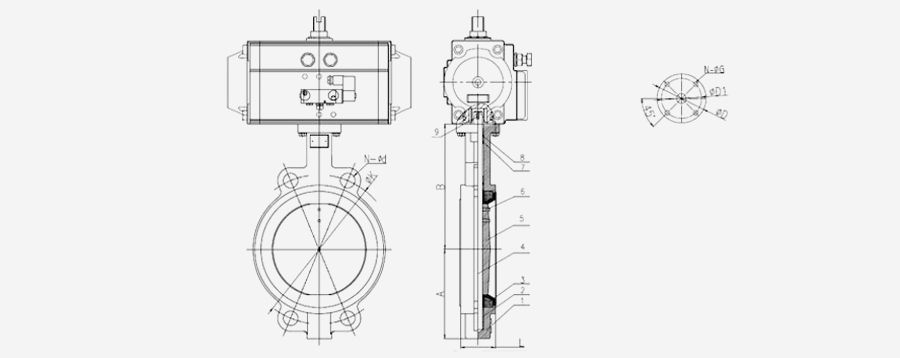

DATA
Name Material
Body Cast iron,CI,DI,Carbon steel ,Cast steel ,Stainless steel ,WCB,CF8/304,CF3/304L,CF8M/316,CF3M/316L
Medium Water,Air,Sewage,Steam,gas,oil,ect
Seat  Natural rubber,EPDM
Stem   Stainless steel ,2Cr13,CF8/304,CF3/304L,CF8M/316,CF3M/316L
Butterfly plate  CF8/304,CF3/304L,CF8M/316,CF3M/316L,Carbon steel coated rubber,Carbon steel cladding fluoriene plastic
