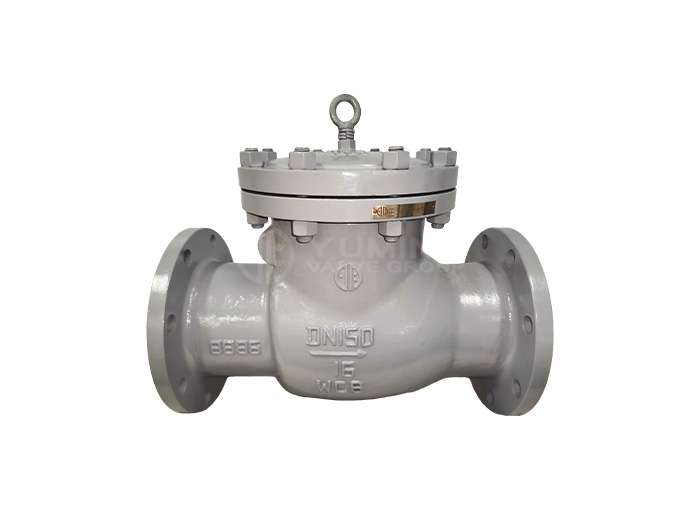

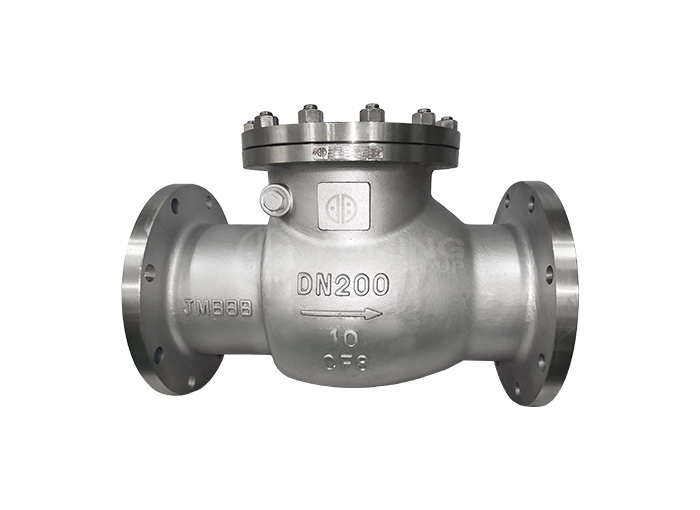

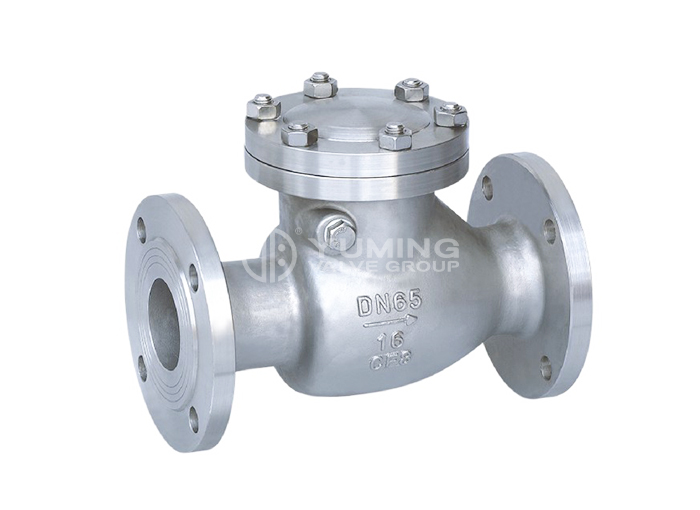

Swing Check Valve-Yuming Valve

Introduction

Structural advantages and features
1. The product is designed and manufactured according to the national standard GB/T12236, with reasonable structure and reliable sealing.
2. The sealing surface of the valve disc and the valve body is made of iron-based alloy or Stellite cobalt-based hard alloy, which is wear-resistant, high-temperature resistant, corrosion-resistant, has good abrasion resistance and long service life.
3. Various piping flange standards and flange sealing surface types can be used to meet various engineering needs and user requirements.
4. The valve body material variety is complete, and the gasket can be reasonably selected according to the actual working conditions or user requirements, which can be applied to various pressure, temperature and medium conditions.
5. The valve disc rotates around the pin outside the valve seat to reduce the violent impact when closing.
6. The pin shaft and the valve disc are connected with an internal structure, there is no external leakage point, and it is more reliable to use.

DATA

DN	L	D	D1	D2	b	Z-Φd	H
PN16
50	230	160	125	100	16	4-Φ18	135
65	290	180	145	120	18	4-Φ18	142
80	310	195	160	135	20	8-Φ18	165
100	350	215	180	155	20	8-Φ18	180
125	400	245	210	185	22	8-Φ18	210
150	480	280	240	210	24	8-Φ23	233
200	500	335	295	265	26	12-Φ23	304
250	550	405	355	320	30	12-Φ25	348
300	650	460	410	375	30	12-Φ25	390
350	750	520	470	435	34	16-Φ25	430
400	850	580	525	485	36	16-Φ30	468
450	950	640	585	545	40	20-Φ30	523
500	1025	705	650	608	44	20-Φ34	525
PN25
50	230	160	125	100	20	4-Φ18	16
65	290	180	145	120	22	8-Φ18	175
80	310	195	160	135	22	8-Φ18	185
100	350	230	190	160	24	8-Φ23	220
125	400	270	220	188	28	8-Φ25	248
150	480	300	250	218	30	8-Φ25	276
200	550	360	310	278	34	12-Φ25	350
250	650	425	370	332	36	12-Φ30	410
300	750	485	430	390	40	16-Φ30	430
350	850	550	490	448	44	16-Φ34	518
400	950	610	550	505	48	16-Φ34	560
450	1025	660	600	555	50	20-Φ34	582
500	1150	730	660	610	52	20-Φ41	618

DN	L	D	D1	D2	D6	b	f	f1	Z-Φd	H
PN40
50	230	160	125	100	88	20	3	4	4-Φ18	169
65	290	180	145	120	110	22	3	4	8-Φ18	173
80	310	195	160	135	121	22	3	4	8-Φ18	185
100	350	230	190	160	150	24	3	4.5	8-Φ23	220
125	400	270	220	188	176	28	3	4.5	8-Φ25	248
150	480	300	250	218	204	30	3	4.5	8-Φ25	270
200	550	375	320	282	206	38	3	4.5	12-Φ30	342
250	650	445	385	345	313	42	3	4.5	12-Φ34	401
300	750	510	450	408	364	46	4	4.5	16-Φ34	423
350	850	570	510	465	422	52	4	5	16-Φ34	455
400	950	655	585	535	474	58	4	5	16-Φ41	510
PN64
50	300	175	135	105	88	26	3	4	4-Φ23	177
65	340	200	160	130	110	28	3	4	8-Φ23	197
80	380	210	170	140	121	30	3	4	8-Φ23	212
100	430	250	200	168	150	32	3	4.5	8-Φ25	248
125	500	295	240	202	176	36	3	4.5	8-Φ30	296
150	550	340	280	240	204	38	3	4.5	8-Φ34	330
200	650	405	345	300	260	44	3	4.5	12-Φ34	385
250	775	470	400	352	313	48	3	4.5	12-Φ41	445
300	900	530	460	412	364	54	4	4.5	16-Φ41	474
350	1025	595	525	475	422	60	4	5	16-Φ41	514
400	1150	670	585	525	474	66	4	5	16-Φ48	616
PN100
50	300	195	145	112	88	28	3	4	4-Φ25	210
65	340	220	170	138	110	32	3	4	8-Φ25	227
80	380	230	180	148	121	34	3	4	8-Φ25	235
100	430	265	210	172	150	38	3	4.5	8-Φ30	274
125	500	310	250	210	176	42	3	4.5	8-Φ34	307
150	550	350	290	250	204	46	3	4.5	12-Φ34	347
200	650	430	360	312	260	54	3	4.5	12-Φ41	402
250	775	500	430	382	313	60	3	4.5	12-Φ41	432
300	900	585	500	442	364	70	4	4.5	16-Φ48	484
PN160
50	300	215	165	132	88	36	3	4	8-Φ25	210
65	340	245	190	152	110	44	3	4	8-Φ30	227
80	380	260	205	168	121	46	3	4.5	8-Φ30	235
100	430	300	240	200	150	48	3	4.5	8-Φ34	274
150	550	390	318	270	205	66	3	4.5	12-Φ41	340
200	650	480	400	345	250	78	3	4.5	12-Φ48	374
250	775	580	485	425	313	88	3	4.5	12-Φ54	440
300	900	665	570	510	364	100	3	4.5	16-Φ54	505

DN	L	D	D1	D2	D6	b	f	Z-Φd	H
PN200
50	300	210	160	128	70	40	3	8-Φ25	120
65	340	260	203	165	97	48	3	8-Φ30	190
80	380	290	230	190	116	54	3	8-Φ34	210
100	430	360	292	245	138	66	3	8-Φ41	240
150	550	440	360	305	190	82	3	12-Φ48	320
200	650	535	440	380	245	92	3	12-Φ48	343
250	775	670	572	508	319	110	3	16-Φ48	380
