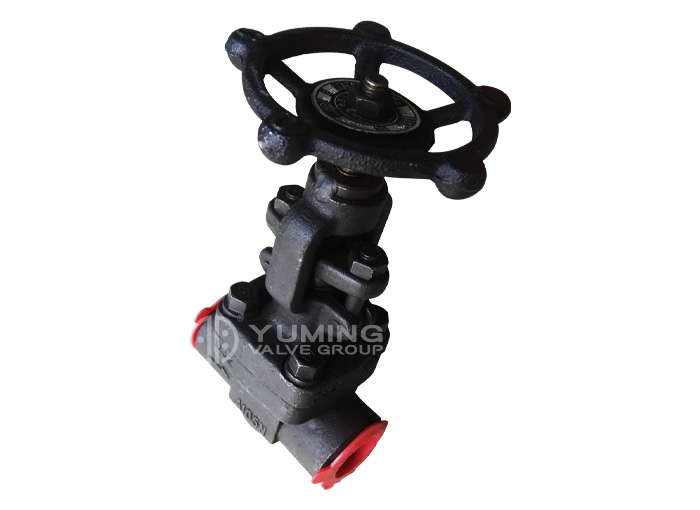

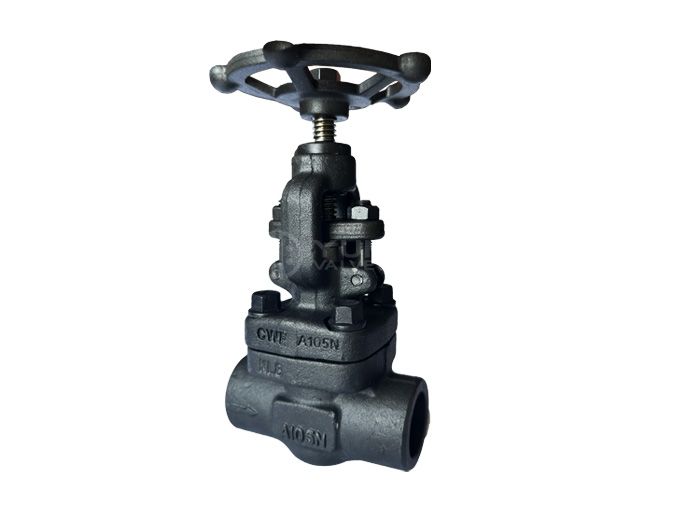

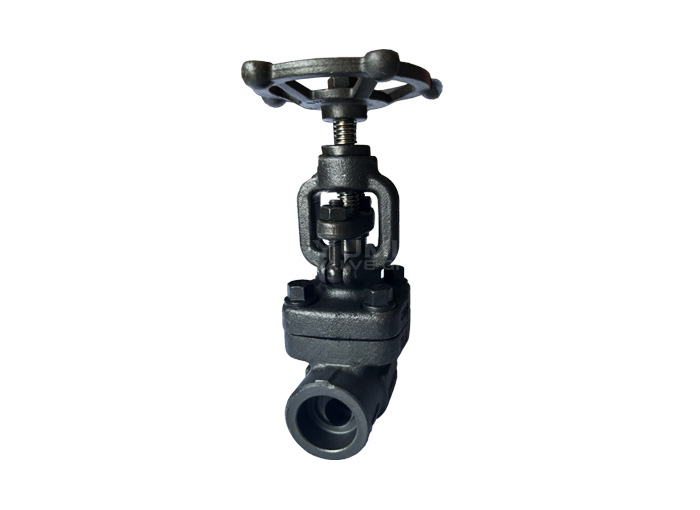

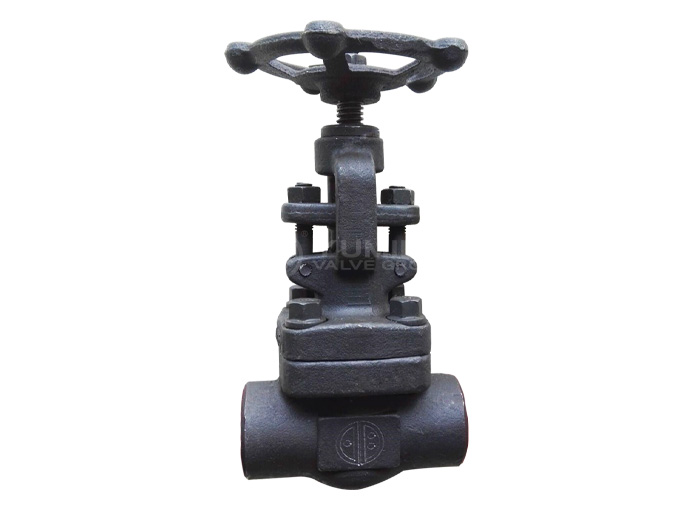

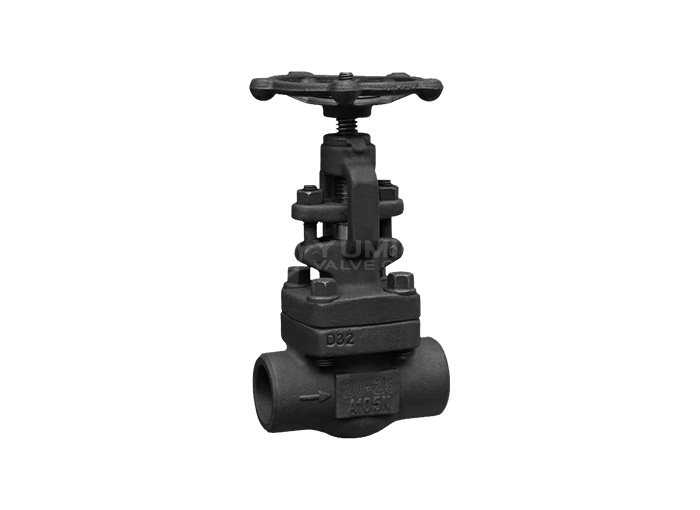

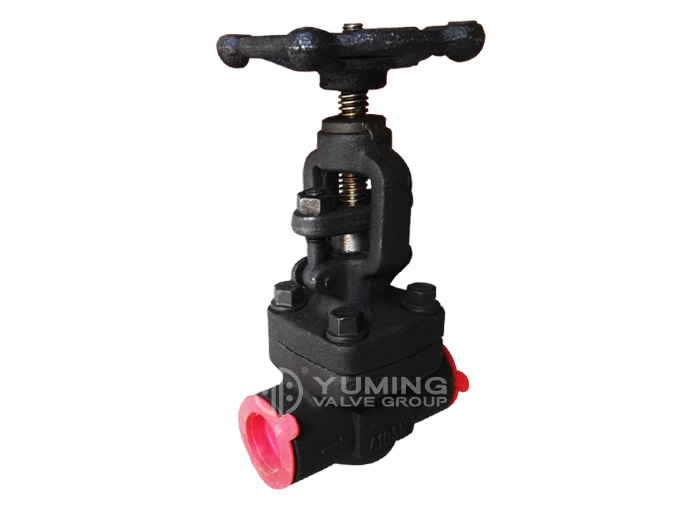

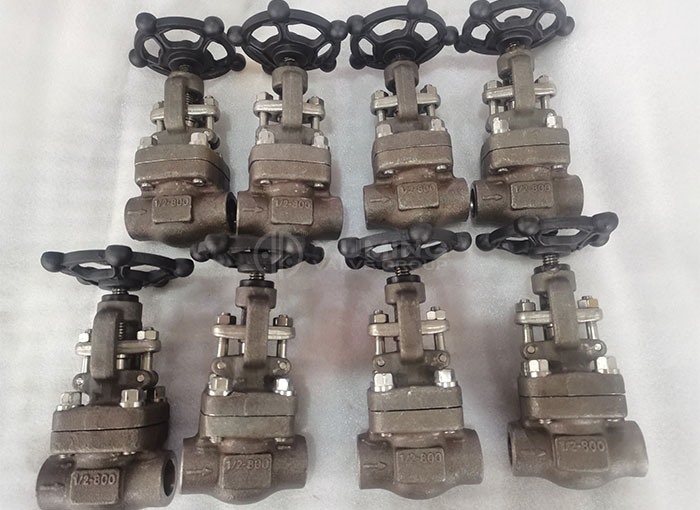

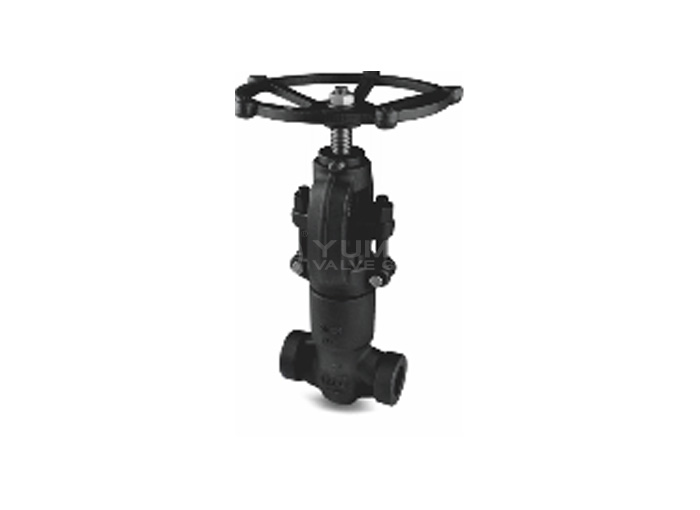

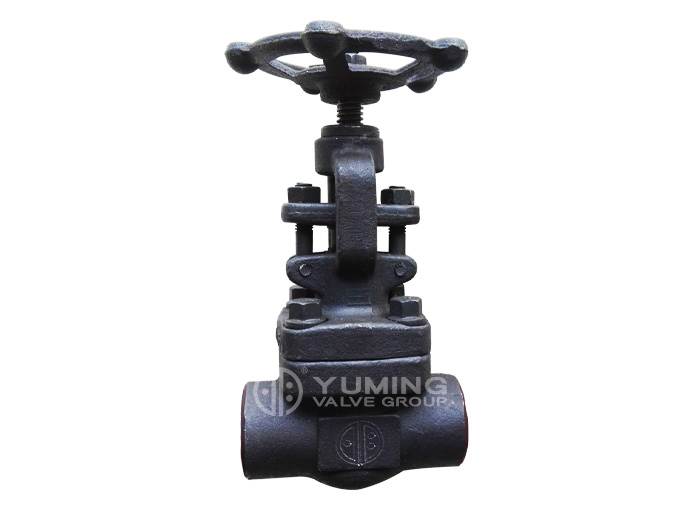

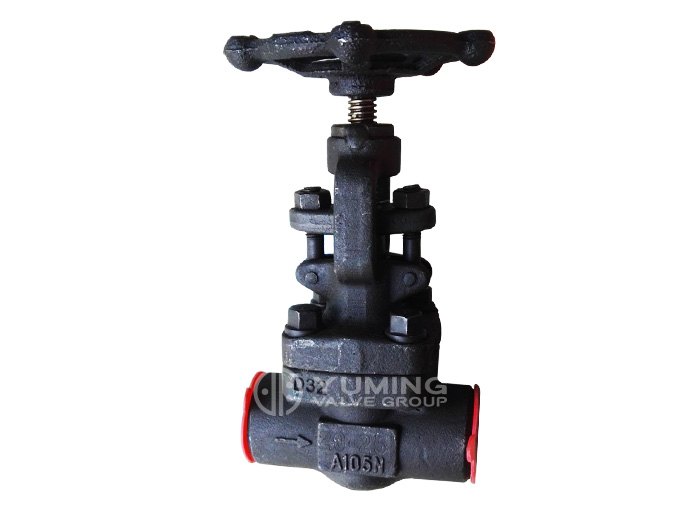

YUMING Forged Steel Globe Valve screwed and flanged ends are Bolted Bonnet, outside screw and yoke type, rising spindle & non-rising hand wheel construction, in size 1/2" (DN15) to 2" (DN50) to suit various critical, non-critical applications and pressure rating in 800 and 1500 class in Regular (Reduced) Port. Our Forge Globe Valve is available in Bolted Bonnet Design, Pressure Seal Bonnet Design, Welded Bonnet Design and Cryogenic Service.
YUMING manufactures Forged Steel Globe Valve threaded in wide range of Body Materials like ASTM A 105 -Forged Carbon Steel, ASTM A 182 F 304/304 L/ 316/ 316 L, Forged Stainless Steel 304/304 L/316/316 L, ASTM A 182 F 11/22 -Alloy Steel to suit high temperature and pressure industrial application.
For High Pressure & Temperature application Stellited F6 Face Seat & Disc available. Forged Steel Globe Valve available in Threaded End (BSP/ NPT Female), Socket Weld End, Butt Weld End, and Weld Neck End.

Design & Testing International Standard of Forged Steel Globe Valve

Design Standard:

• BS 5352/API 602/ASME B 16.34

Inspection & Testing Standard:

• BS EN ISO 12266-1(BS 6755-l)/API 598/ISO 5208

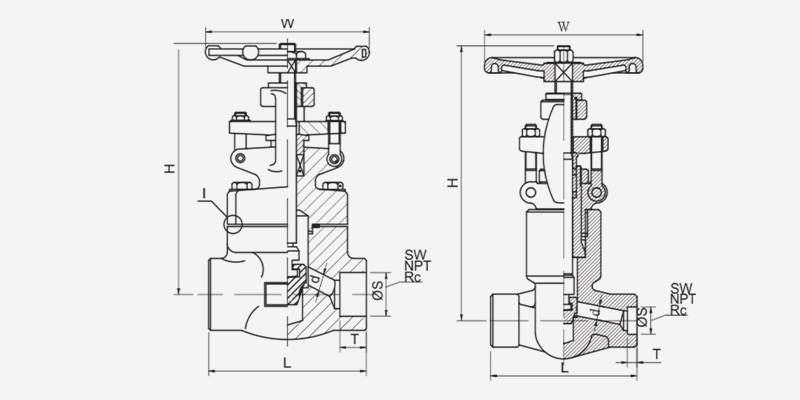

Flange To Flange Distance:

• As Per ANSI B 16.10 / BS 5352 / API 602
• Screwed-Threaded End to ANSI B 1.20.1
• Socket Weld End to ANSI B 16.11
• Flanged Ends as per ANSI B 16.5

Manufacturing Size Range:

• 1/2" (DN15)to 2"(DN 50)

Pressure Rating of Valve:

• 800#/1500#/ 2500# for Screwed Ends
• 150#/300#/600#for Flanged Ends

Valve Operation:

• Manual Hand Wheel Operated

Valve Seat Leakage:

• Leakage Class IV

MOC (Bill of Material -BOM)

Body & Bonnet:

• ASTM A 105-Forged Carbon Steel
• 304/ 304L-ASTM A 182 F 304/ F 304L-Forged Stainless Steel
• 316/316L-ASTMA 182 F 316/F 316L-Forged Stainless Steel
• ASTM A 182 F 11/F 22 -Alloy Steel

Trims:

• 304/316 (SS 304/SS 316)-ASTM A 276 T
• 304L/ 316L (SS 304L/SS 316L)-ASTM A276 T
• ASTM A276T-410 (S.S. 410-13% Cr. Steel)
• ASTM A 182 GR F6A/ Half-Full StellitedF6

Gland Packing:

• Grafoil Ring/Pure Black Carbon Graphite Ring
• Inconel Wire based Graphite Asbestos cur braided ring
• PTFE Impregnated Asbestos Gland Rope
• PTFE Virgin / 25% Glass Filled Teflon / Carbon Filled Teflon-"V" Ring Set

Gasket:

• SS 304/316 Spiral Wound with CAF/Graphite Filled
• Graphited Asbestos wire based
• CAF - Compressed Asbestos Fibre
• Graphite Tensed Gasket

Bolts / Stud & Nuts:

• ASTM A 193 GR. B7 / A 194 GR. 2H
• S.S. 304/316/304L/316L

Hand Wheel:

• Ductile Iron/ S.G. Iron / Carbon Steel

Salient Features
Body & Bonnet made from high quality forging.
The Forgings are precision machined for high performance.
Leak Proof Body-Bonnet Joint with Spiral Wound Gasket.
Ground Finish Stem.
Self-Aligning Two-Piece Gland.
The back seating feature facilitates repacking of the stuffing box online with the valve in fully open position.

Application Industries for Forged Steel Globe Valve
Generally fine controlling of flow.
Power Plants & Process Industries.
Petrochemical Plants & Refineries.
Fertilizers Plants.
Process & General Industries.
Sugar Industries & Distillery Plants.
Water, Steam, Gas, oil, and other non-aggressive media.
Other applications on request.
