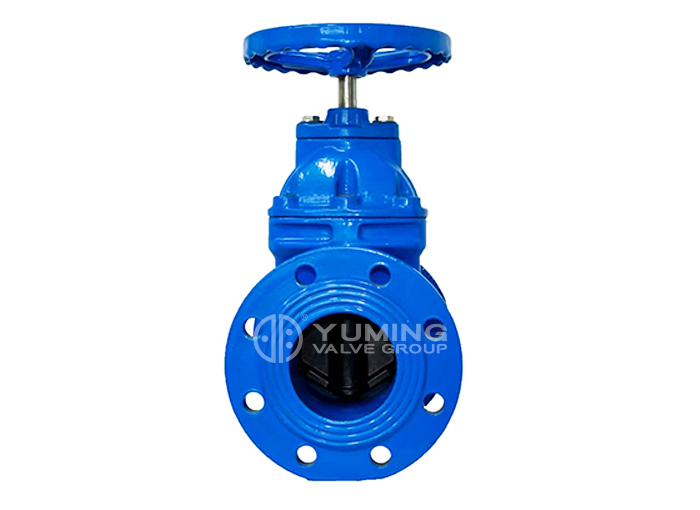

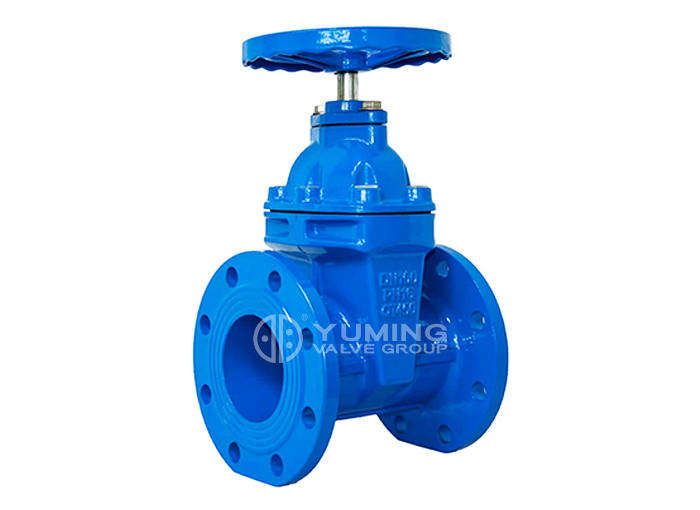

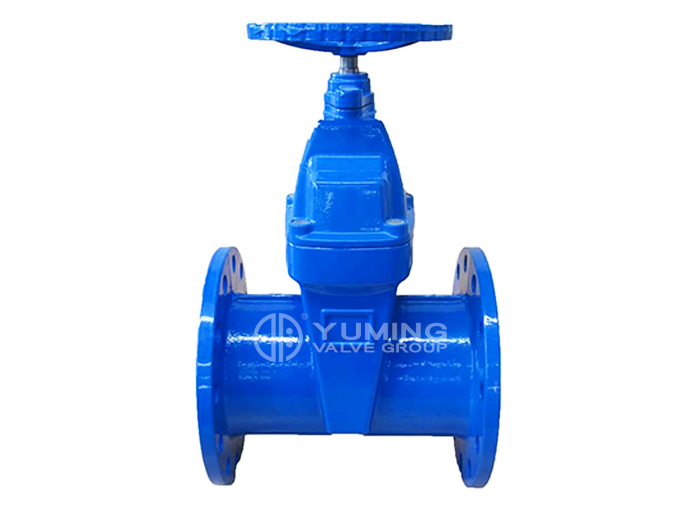

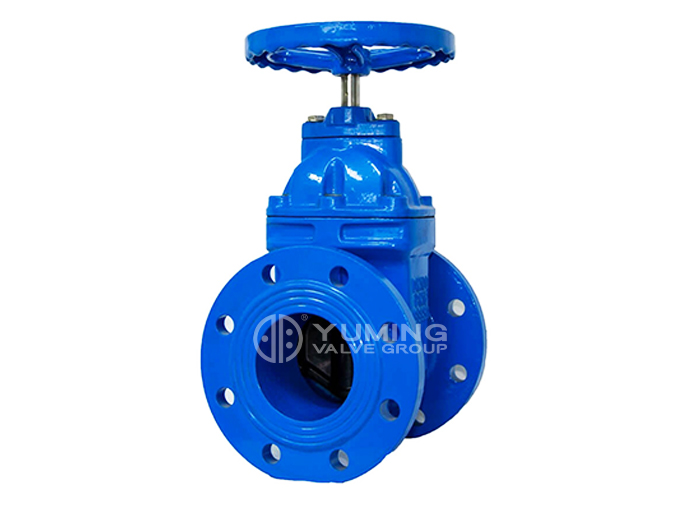

BS5163 Non-rising Stem Resilient Seat Gate Valve

Introduction

The BS5163 Resilient Seated Gate Valve is a high-performance valve designed and manufactured according to the BS5163 standard. It is widely used in various fields such as water supply, sewage treatment, and industrial water treatment. Known for its excellent sealing performance and durability, this valve features a resilient seat design that offers superior corrosion resistance and ease of operation, making it an ideal choice for various water treatment systems.

Features

Resilient Seat Design:
- Ensures superior sealing performance, effectively preventing leakage.
Standardized Design:
- Complies with BS5163 standards, guaranteeing product consistency and interchangeability.
Excellent Corrosion Resistance:
- The internal and external surfaces of the valve are treated for corrosion resistance, offering outstanding durability.
Ease of Operation:
- Equipped with a lightweight operating mechanism for effortless opening and closing.
Multiple Material Options:
- Available in various body and seat materials to meet different operational requirements.
High Reliability and Durability:
- Robust valve body structure capable of withstanding high pressures and harsh environments.

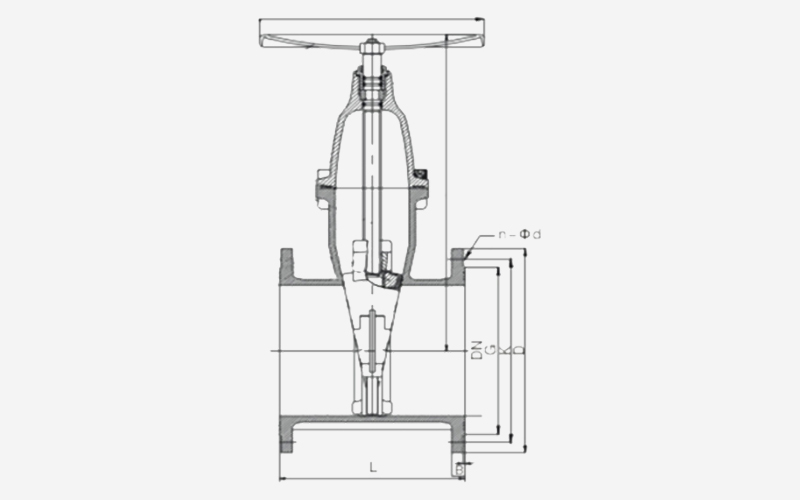

DATA

DN	L1	D	K		G		B	C	n-d		f	H	NM	Turn
DN	L1	D	P10	P16	P10	P16	B	C	P10	P16	f	H	NM	Turn
40	165	150	110	110	88	88	19	160	4-19	4-19	3	210	30	6.5
50	178	165	125	125	100	100	19	160	4-19	4-19	3	210	35	7
65	190	185	145	145	120	120	19	160	4-19	4-19	3	235	35	9
80	203	200	160	160	135	135	19	200	8-19	8-19	3	264	40	11
100	229	220	180	180	156	156	19	200	8-19	8-19	3	294	50	13.5
123	254	250	210	210	186	186	19	280	8-19	8-19	3	344	60	11
150	267	285	240	240	212	212	19	280	8-23	8-23	3	389	70	13
200	292	340	295	295	268	268	20	320	8-23	12-23	3	481	120	17
250	330	405	350	355	318	318	22	320	12-23	12-28	3	559	150	21
300	356	460	400	410	370	373	24.5	420	12-23	12-28	3	655	160	25
350	381	520	460	470	430	433	26.5	420	16-23	16-28	3	751	200	29
400	406	580	515	525	480	483	28	500	16-28	16-31	4	927	250	33
450	432	640	565	585	528	546	30	500	20-28	20-31	4	1020	420	37.5
500	457	715	620	650	582	605	31.5	500	20-28	20-34	4	1114	350	41.5
600	508	840	725	770	680	710	36	600	20-30	20-37	4	1251	400	50
