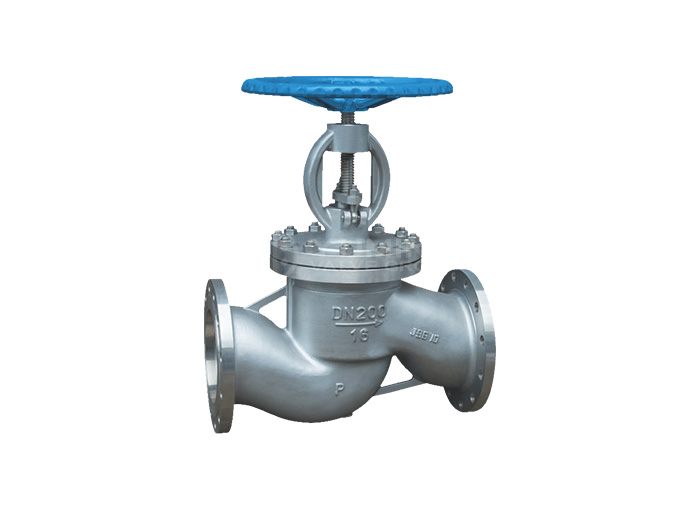

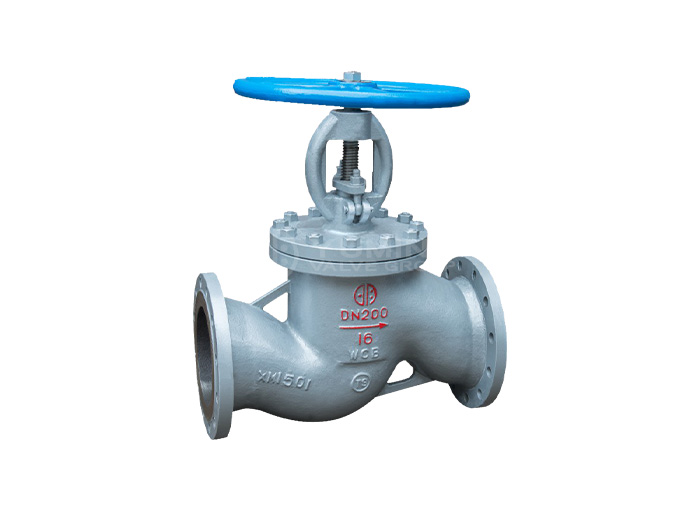

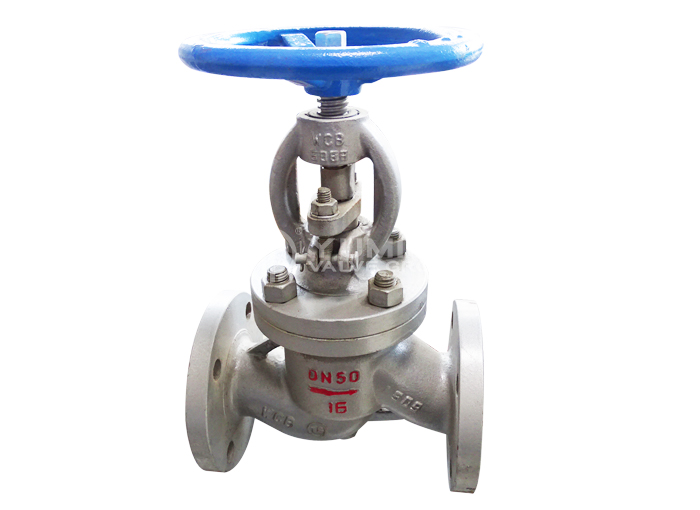

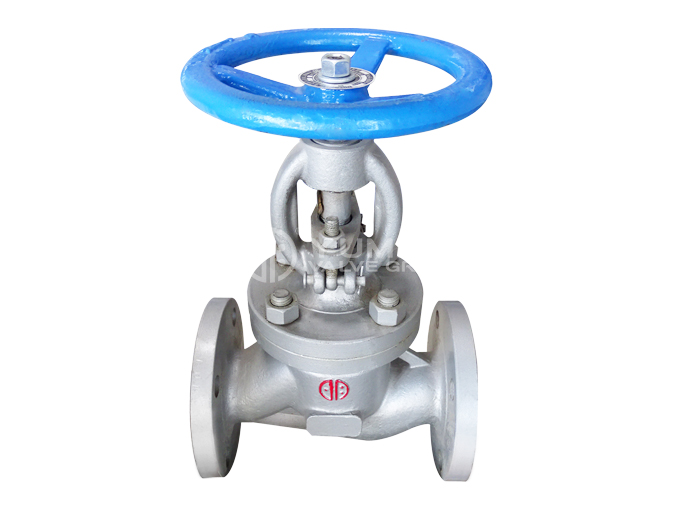

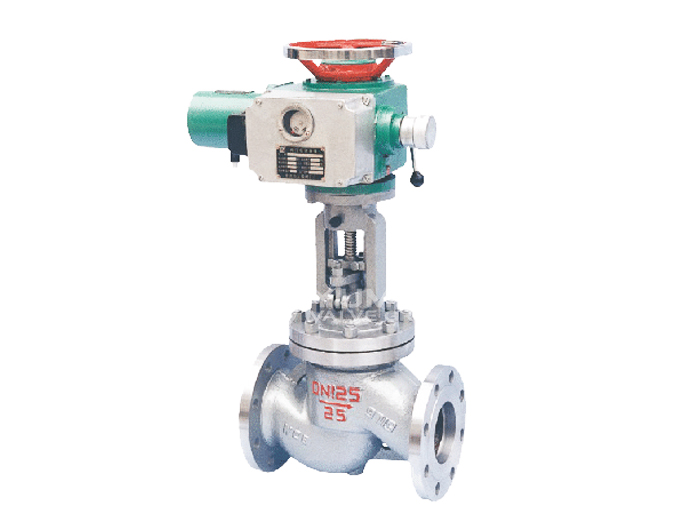

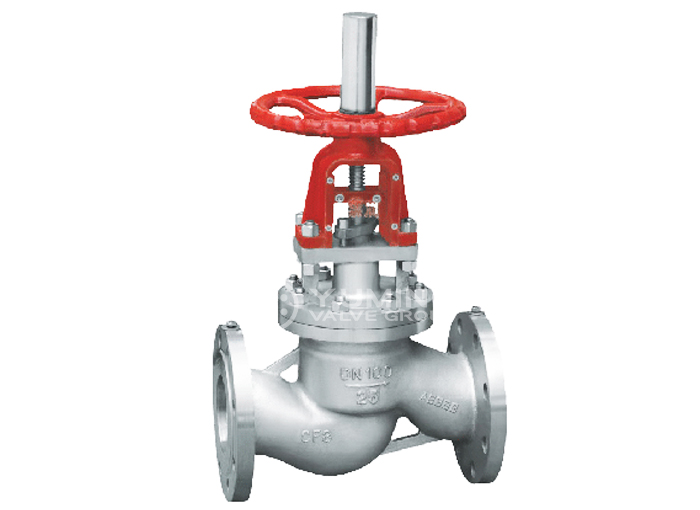

Cast Steel Globe Valve
Cast Steel Globe Valve
Cast Steel Globe Valve
Cast Steel Globe Valve

Cast Steel Globe Valve

Size Range: 1/2”-8”
Pressure: Class150-class600
Temperature: -29℃-425℃
Concatenon: Flange
Medium: Water,oil,steam
Body: WCB/stainless steel
Send Email
Chat Now
Get Price
Introduction
DATA
Related
INQUIRY
Introduction
Product advantages
  1. Simple structures.Easier to be manufactured and repaired.
  2. Small working stroke,short opening and closing time. 　　
  3. Good sealing performance,small friction between sealing face and life long.
  4. The friction between sealing face is smaller than gate valve during the process of opening and closing.And it’s wear-resistant. 　　
  5. It usually have only one sealing face,good manufacturing process and easy to be repaired.
  6. The structure style of globe valve’s body can be divided into straight-through, three-and right-angle type.
DATA
Nominal diameter
DN		 L D D1 D2 b f Z-d H D0
PN16
10 130 90 60 40 16 2 4-14 198 120
15 130 95 65 45 16 2 4-14 218 120
20 150 105 75 55 16 2 4-14 258 140
25 160 115 85 65 16 2 4-14 275 160
32 180 135 100 78 18 2 4-18 280 180
40 200 145 110 85 18 3 4-18 330 200
50 230 160 125 100 20 3 4-18 350 240
65 290 180 145 120 22 3 8-18 400 280
80 310 195 160 135 22 3 8-18 355 280
100 350 230 190 160 24 3 8-23 415 320
125 400 270 220 188 28 3 8-25 460 360
150 480 300 250 218 30 3 8-25 510 400
200 600 360 310 278 34 3 12-25 710 400
250 650 425 370 332 36 3 12-30 786 450
300 750 485 430 390 40 4 12-30 925 500
350 850 550 490 448 44 4 16-34 1030 600
400 980 610 550 505 48 4 16-41 1170 700
Nominal diameter
DN		 L D D1 D2 D6 b f f2 Z-d H D0
PN25
10 130 90 60 40 35 16 2 4 4-14 198 120
15 130 95 65 45 40 16 2 4 4-14 233 120
20 150 105 75 55 51 16 2 4 4-14 275 140
25 160 115 85 65 58 16 2 4 4-14 285 160
32 180 135 100 78 66 18 2 4 4-18 302 180
40 200 145 110 85 76 18 3 4 4-18 355 200
50 230 160 125 100 88 20 3 4 4-18 373 240
65 290 180 145 120 110 22 3 4 8-18 408 280
80 310 195 160 135 121 22 3 4 8-18 436 320
100 350 230 190 160 150 24 3 4.5 8-23 480 360
125 400 270 220 188 176 28 3 4.5 8-25 558 400
150 480 300 250 218 204 30 3 4.5 8-25 611 400
200 600 375 320 282 260 38 3 4.5 12-30 720 400
350 980 570 510 465 422 52 4 5 16-34 860 600
400 1100 655 585 535 474 58 4 5 16-41 1010 700
Nominal diameterDN L D D1 D2 D6 b f f2 Z-d H D0
PN64
10 170 100 70 50 35 18 2 4 4-14 198 120
15 170 105 75 55 41 18 2 4 4-14 195 140
20 190 125 90 68 51 20 2 4 4-18 228 160
25 210 135 100 78 58 22 2 4 4-18 275 180
32 230 150 110 82 66 24 2 4 4-23 325 200
40 260 165 125 95 76 24 3 4 4-23 360 240
50 300 175 135 105 88 26 3 4 8-23 410 280
65 340 200 160 130 110 28 3 4 8-23 450 320
80 380 210 170 140 121 30 3 4 8-23 485 360
100 430 250 200 168 150 32 3 4 8-25 537 400
125 500 295 240 202 176 36 3 4 8-30 631 400
150 550 340 280 240 204 38 3 4 8-34 646 450
200 650 405 345 300 260 44 3 4 12-34 813 500
PN100
10 170 10 70 50 35 20 2 4 4-14 198 120
15 170 105 75 550 40 20 2 4 4-14 202 140
20 190 125 90 68 51 22 2 4 4-18 228 160
25 210 135 100 78 58 24 2 4 4-18 250 180
32 230 150 110 82 66 24 2 4 4-23 326 220
40 260 165 125 95 76 26 3 4 4-23 359 240
50 300 195 145 112 88 28 3 4 4-25 414 280
65 340 220 170 138 110 32 3 4 8-25 434 320
80 380 230 180 148 121 34 3 4 8-25 547 400
100 430 265 210 172 150 38 3 4.5 8-30 621 450
125 500 310 250 210 176 42 3 4.5 8-34 732 450
150 550 350 290 250 204 46 3 4.5 12-34 840 500
200 650 430 360 312 260 54 3 4.5 12-41 925 550
PN160
15 170 100 75 52 40 24 2 4 4-18 148 140
20 190 130 90 65 51 26 2 4 4-23 156 160
25 210 140 100 72 58 28 2 4 4-23 125 180
32 230 165 115 85 66 30 2 4 4-25 200 200
40 260 175 125 92 76 32 3 4 4-27 231 240
50 300 215 165 132 88 36 3 4 8-25 262 250
65 340 245 190 152 110 44 3 4 8-30 303 320
80 380 260 205 168 121 46 3 4 8-30 341 400
100 430 300 240 200 150 48 3 4 8-34 485 450
Application
