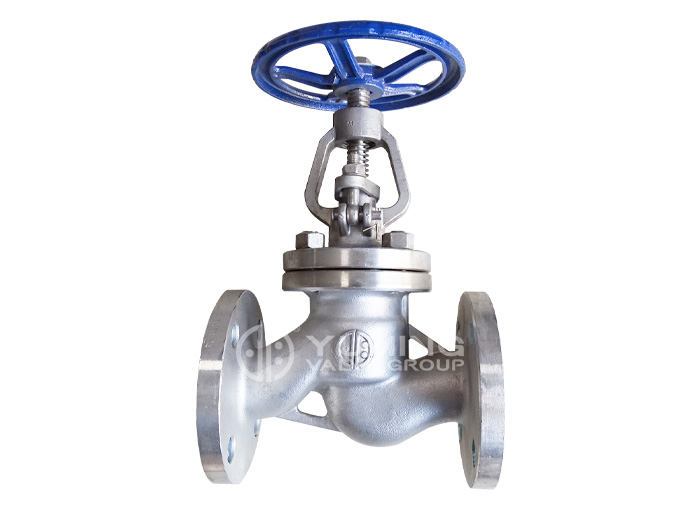

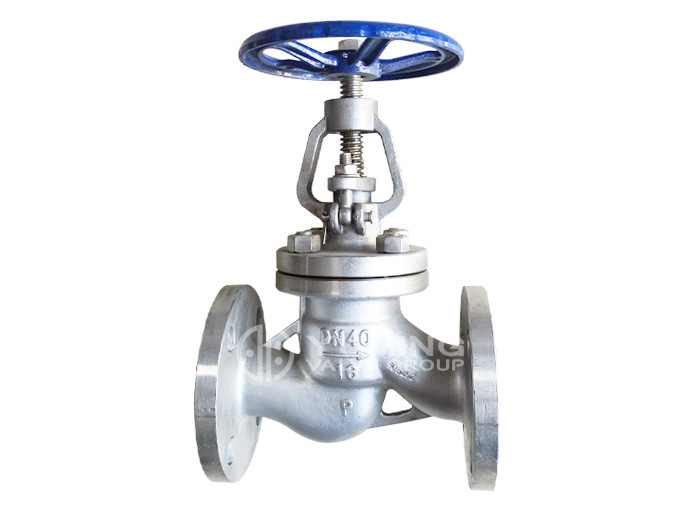

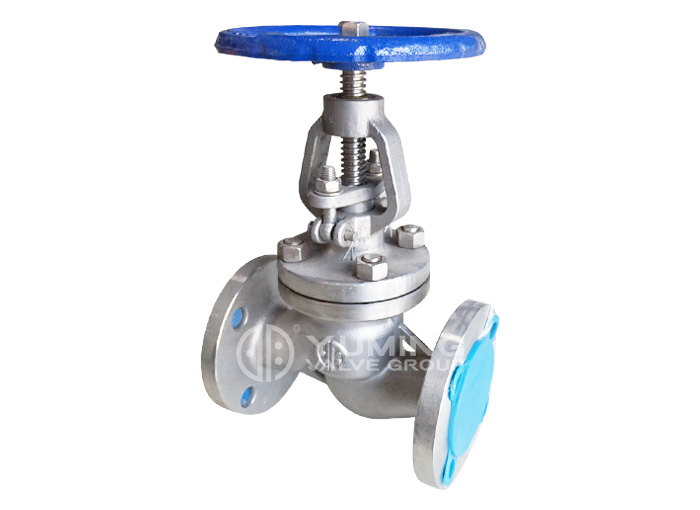

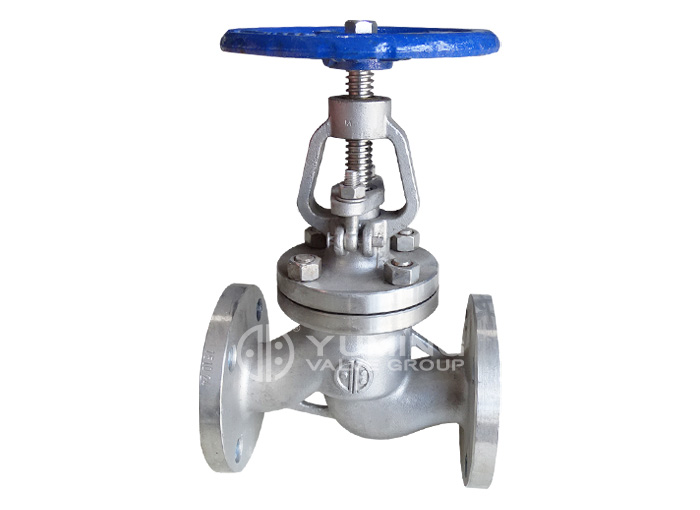

Stainless Steel Globe Valve
Stainless Steel Globe Valve
Stainless Steel Globe Valve
Stainless Steel Globe Valve
Stainless Steel Globe Valve
Stainless Steel Globe Valve
Stainless Steel Globe Valve
Stainless Steel Globe Valve

Stainless Steel Globe Valve

Size Range : DN50-DN300
Pressure : PN16/150LB
Temperature: ≤350℃
Body Materials: SS304
Seat Materials: stainless steel / alloy steel
Disc Materials: CF3/ CF3M/CF8/CF8M
Stem Materials: 2Cr13/ 304/316
Medium: Water, weak corrosive medium, etc.
Application ： . Water treatment, petrochemical, food and medicine, electric energy, metallurgy, etc
Send Email
Chat Now
Get Price
Introduction
DATA
Related
INQUIRY
Introduction
Product Identification:

The axis of the valve stem is perpendicular to the sealing surface of the valve seat, the stem is opened or closed very fast, which makes the valve is very suitable for cutting off or regulating the medium; The valve body is 304, 316 etc. It widely used in chemical, shipping, medicine, food machinery and other industries.


Product Advantages:

1. Precision casting valve body,2 shot blasting treatment,smooth appearance, no trachoma.
2. CNC lathe processing of internal parts
3. Heavy type valve body.
4. Inverted seal treatment of contact surface between bonnet and stem to avoid leakage.
5. Each valve body is pickled and passivated to make the casting uniform and bright and improve corrosion resistance
6. Each valve will be inspected for shell and seal pressure before leaving factory.
DATA
Optional Body Seat Seal Disc Stem Actuator Pressure
CF3/ CF3M/CF8/ CF8M stainless steel / alloy steel CF3/ CF3M/CF8/CF8M 2Cr13/ 304/316 Handwheel/
Bevel Gear/ Motorized/
Pneumatic		 PN16/PN25/PN40/150LB

Name Design and manufacture Face to face Length Pressure Test  Connection Flange
Reference
Standard		 GB/T 12235
ANSI B16.34		 GB/T 12221
ASME B16.10		 GB/T 13927
API 598		 JB/T 79
ASME B16.5

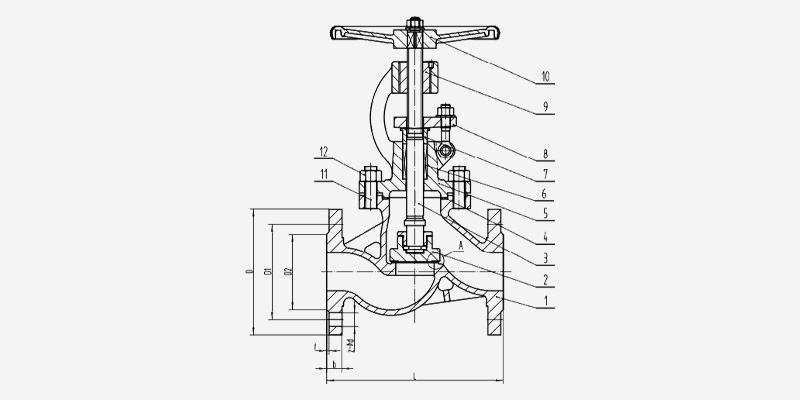

Name Body Disc Stem Seat Seal Handwheel
Material 304 304 304 304 DI

Size PN16 150LB
DN NPS（inch） L D D1 Z-φd L D D1 Z-φd
50  2'' 230 160 125 4-18 203 152 120.5 4-19
65  2  1/2'' 290 180 145 4-18 216 178 139.5 4-19
80  3'' 310 195 160 8-18 241 190 152.5 4-19
100  4'' 350 215 180 8-18 292 229 190.5 8-19
125  5'' 400 245 210 8-18 356 254 216 8-22
150  6'' 480 280 240 8-22 406 279 241.5 8-22
200  8'' 600 335 295 12-22 495 343 298.5 8-22
250  10'' 650 405 355 12-26 622 406 362 12-25
300  12'' 750 460 410 12-26 698 483 432 12-25
